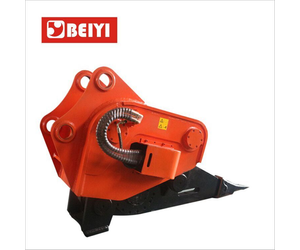

Lydite - Model BY-HR350 - Mining work equipment vibrating ripper rock hammer hydraulic ripper for 24-35 ton excavator
-
Most popular related searches
Performance Parameter
| Model BY-HR350 | ||
| Hydraulic excavator | tons | 24 - 30 |
| Mass of ripper (incl. top bracket) | kg | 3300 |
| Mass of ripper (less top bracket) | kg | 2800 |
| Hydraulic working pressure | MPa | 22 - 24 |
| Hydraulic return pressure | MPa | 0.6 |
| Hydraulic oil flow | L/min | 180 |
| Case drain max. pressure | MPa | 0.4 |
| Frequency | 1/min | 1300 |
| Dimensions L x W x H | cm | 280x85x160 |
| Accumulator pressure | Mpa | 0.5 |
Videos related to this product
-
Use hydraulic ripper in mining work
1.The core part of this equipment is completely closed and is driven by high speed anti-knock
motor. Hydraulic oil just go through motor while not core box, so that metal grinding loss of dirt may not go to the excavator body, so will not be black oil and oil leak.
2.Hydraulic ripper work characteristics is single point contact drive around, that is to say when make a point of the surrounding soil or ore also being destroyed. This is the re -
Rock hammer------hydraulic ripper
Hydraulic ripper is a physical crushing equipment that its set mechanical hydraulic mechanics, and digital signals, digital surveillance as a whole. The knife tooth of ripper can be have a impact on object (target detritus) to broke .under the action of the exciter
Hydraulic ripper is a kind of high efficiency and energy saving knapper. It works without noise pollution and has no impact on excavator hydraulic system.
