Lydite - Model BY-VH250 - Highway ...

Lydite - Model BY-VH250 -Highway Guardrail Used Hydraulic Drop Hammer Ground Screw Mini Sheet Post Ramming Pile Driver Machine

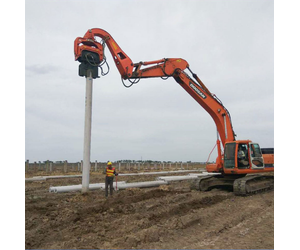

Hydraulic pile driver is using its high frequency vibration to vibrate pile body with high acceleration to pass the vertical vibration of mechanical produce to pile which leading to changes in the soil structure around the pile, strength decrease. Soil around the piles become liquefaction to reduce frictional resistance between side of the pile and the soil. Then using the excavator down force, vibrating pile hammer and pile body weight to sink pile into the soil. When extracting piles, in the condition of vibration to pull out the pile by using excavator lift force. Excitation force needed by pile driving machinery are comprehensive determined by site soil, soil condition, moisture content and type of pile, construction. Advantages --Easy operation --Flexible control --Silence operation --Easy maintenance --Precision design --Reliable performance --Quick speed --Save time wxbychina@163.com www.wxbychina.com http://www.wxbychina.com/Contact/

Most popular related searches

pile driver

high frequency vibrator

vibratory pile driver

pile driving machine

hydraulic piling hammer

Module	UNIT	BY-VH250	BY-VH330	BY-VH350	BY-VH450
Eccentric moment	NM	40	50	65	85
Frequency	RPM	2800	2800	2800	2800
Excitation Force	TON	36	45	58	75
Weight of main body	KG	1500	2200	2800	3500
Operating Pressure of oil system	BAR	280	280	300	300
Flow Demand for Hydraulic oil system	LPM	155	168	210	255
Excavator	TON	18-25	30-40	40-50	40-65
Max pile length	M	9	13	16	18

Lydite - Model BY-VH250 -Highway Guardrail Used Hydraulic Drop Hammer Ground Screw Mini Sheet Post Ramming Pile Driver Machine

data of Vibratory pile driver
