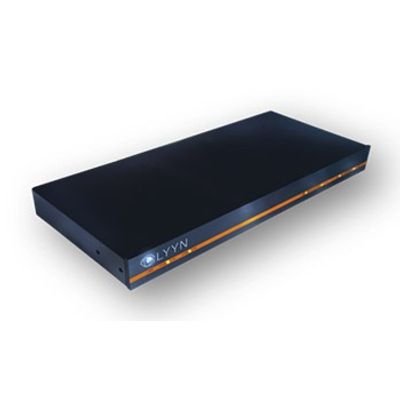

Lyyn - Model Hawk 1 & 2 -19” Rack-Mounted Visibility Enhancer for Analog CCTV
The real-time lyynification solution for analog CCTV systems. 19” rack-mounted visibility enhancer. One viewer - many cameras: By installing the LYYN Hawk System together with a video switch it is possible to lyynify the whole system. The operator can choose and switch any camera through the unit, providing lyynification wherever it is needed.
Cost efficient
Instead of installing more enhanced cameras you only need one LYYN Hawk System per simultaneous viewing channel. A simple system upgrade bringing a powerful result to the whole system.
Single or dual channel
LYYN Hawk System comes in two different configurations, with single or dual video channels. This means that you can save rack space, and money, if you need more than one simultaneous viewer in your system.
Video standards

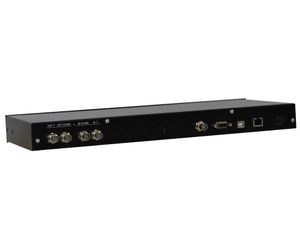

PAL 625-line 25 fps or NTSC 525-line 30 fps, autosensing of format. Standard composite or S-video (separate luminance and chrominance), with BNC connectors. Video synchronization
LYYN Hawk System has three video synchronization modes.
The video output can be synchronized to the video input, an external synchronization signal on a separate micro connector can be used or an Time Based Corrected signal can be obtained by controlling the delay.
Simple integration
LYYN Hawk System is controlled remotely. It can be easily integrated into operator consoles through three different control interfaces:
- RS 232
- USB 2.0
- Ethernet (RJ45) either using Telnet or an internal web server
- Lyynification™: Video
- level window position window size
- saturation
- hue
- brightness
- contrast
- sharpness
Power
External power adapter: 12 V DC / AC, 1A
Operating conditions
Temperature: 0 — 50 °C (32 — 122 °F)
Humidity: 0 — 80% RH (non-condensing)
Dimensions and weight
Depth: 165 mm Width: 483 mm Height: 42 mm
Weight: 2100 g excluding power adapter
Approvals
- EU standards:
- EN55022 Class B
- EN55024
- EN61000-3-2
- EN61000-3-3
- US Standards:
- FCC Part 15 Subpart B Class A
