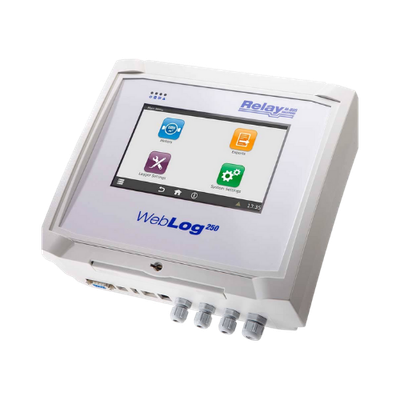

Integra - Model AMBUS WEBLOG 250 -M-Bus Datalogger
M-Bus Datalogger for 250 devices with touchscreen and webserver.
Most popular related searches
- M-Bus Datalogger for up to 250 meters
- Local reading with Touchscreen Display
- Remote readout via web browser
- Many intertaces available for connectity to other systems
- Automatic data export in several formats and several interfaces
- Different languages available
- WebServer for readout, commisionning and diagnostics
- Operating voltage: 110 .. 250VAC, 47 .. 63 Hz
- Power consumption: max. 100W
- Temperature range: 0°C to 55°C
- M-Bus voltage: 42 V (Mark without load)
- M-Bus Standby current: max. 375 mA
- Overcurrent threshold: 500mA
- M-Bus baud rate: 300 .. 9600 Baud
- Galvanic isolation available
- Housing light grey ABS plastic, protection class IP 52
- Dimensions (H x B x T): 264 x 234 x 86 mm ; mounting on DIN rail or wall, optional cylinder lock
- LED status indicators power, communication, maximum load M-Bus
- M-Bus short circuit
- Display 7“ LED display with resistive touch screen
- 800 x 480 pixels 262144 colors
- Memory 1 GB Flash memory
- Interfaces 10/100 MBit Ethernet, USB-Host, USB-Device, RS232 optional: W-LAN
- Terminals 3 x terminals for M-Bus, plug-in terminals for floating contacts and relay outputs
