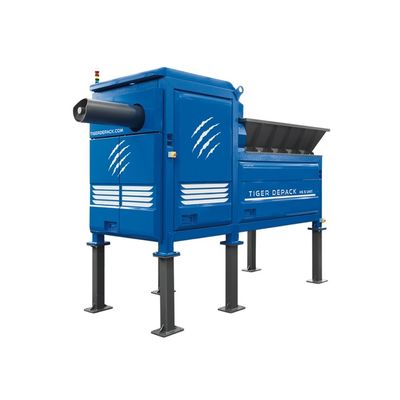

Tiger Depack - Model HS 5 -Machine for Separating and Depackaging Waste
Small dimensions, high performance. Is the smallest version of the tiger depack range. Born from the specific need to be installed in more restricted space. Features the same separation and depackaging qualities as the larger version.
Most popular related searches
Engine power: 30 kW
Capacity: 3-7 t/h
- L = 5650 mm
- W = 2000 mm
- H = 3900 mm
- Hopper loading height: 3300 mm
- Hopper loading width: 2250 mm
- Plastic discharge height: 3000 mm
Dimensions in mm
- Max Length: 5650 mm
- Max Width: 2000 mm
- Max Frame Height: 2700 mm
- Max Height: 3900 mm
- External Length of Plastic Extractor: 920 mm
- Frame Length: 4730 mm
- Height of Standard Legs: 1200 mm
- Hopper: Standard hopper AISI 304
- Legs: Standard Leg height: 1200 mm
- Separation: Patented vertical separation block
- Plastic Extraction: Dry fraction extraction screw
- Engines
- ABB engine for the shaft: 30 kW
- Engine with gearmotor for feeding hopper: 5,5 kW
- Engine with gearmotor for extraction screw: 3 kW
- Liquid
- Double water input line: process water line and washing line
- Solenoid valve for the regulation of the incoming water flow
- Liter count
- Electrical and Software Part
- Control panel with touchscreen
- Software
- Soft Starter
- Frequency converter
- Electric cabinet
- Rotation sensor for rotor
- Specifications subject to technical changes. Specifications are approximate, illustrations and descriptions may include options that are not part of the standard equipment.
