MACHT - Model MSSF A2-4-150 -Rotary Transfer Machines

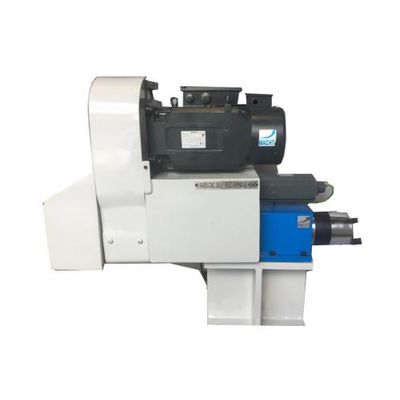

This Model of Spindle has been developed to Standardize the Spindles for Rotary Transfer Machines which require Multi Axes Operations. The Spindle Nose is as per A2-4 and can adopt different tooling systems. Here it is shown in conjunction with a Servo Actuated Facing Head.
Most popular related searches
- Grand Cast Iron Housing precision machined and honed
- Cartridge type spindle running on precision bearings
- Spindle & Drive Units are Single Unit
- Coolant through Spindle Possible in this type of Unit
- Spindle Nose A2-3 or A2-4
- Feed Stroke 150 mm - Servo Controlled
- Repeatability +/- 0.003
- Positional Accuracy < 0.010
Sr. No.Technical DataSpecification1.Total Stroke150 MM2.Spindle NoseA2-43.Spindle Speed5000 max.4.Positioning Accuracy<0.01 mm5.Repeatability+/-0.0036.Spindle Runout<0.005
