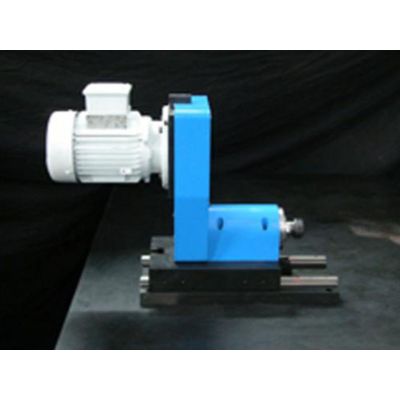

MACHT - Slide Mounted Spindle Units
Macht has a complete range of Slide Mounted Spindle Units from ISO 30 to ISO 50. The Spindle Bearing Arrangements can vary as per the Machines requirement or application . Typically for Drilling and Milling we use standard arrangement of a Pair of Taper Roller Bearing in front and Cylindrical Roller Bearing at the back.
Most popular related searches
- Drilling Spindles : with different tool adaptors max RPM 25000
- Milling Spindles : SK 30 ~ SK 50 Size.
- Grinding Spindles : Internal Grinding Spindles @ 25000 RPM
- Boring Spindles : Fine Boring Spindle Units with TIR < 2 Microns
- CNC Turning Spindles : Spindles as per International Standards from A2-3 ~ A2-8 Size
| SLIDE MOUNTED SPINDLE UNITS: ISO-40 | ||
| S. No. | Technical Data | Specification |
| 1. | Speed | Upto 7500 RPM |
| 2. | Max. drilling capacity | 40mm |
| 3. | Spindle Runout | <0.01 mm |
| 4. | Motor rating Std. | 3.7 KW |
| 5. | Motor Speed 50 HZ | 1500 / 3000 RPM |
| 6. | Power Supply 50 HZ | 415 V |
| 7. | Tool Holder | SK 40 / BT 40 |
