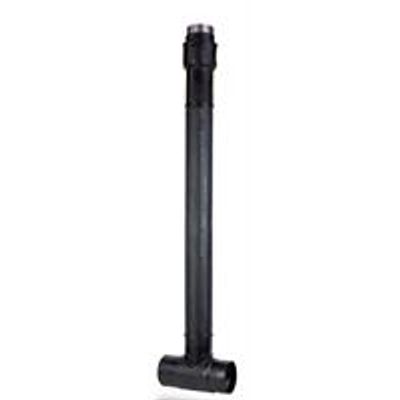

Macplast - Model 105 -Threaded Line Hydrant
FromMacplast Srl
Hydrant column for in-line installation onirrigation systems. Connection to the system by means of electro-fusion sleeve coupler or butt welding. Sealed male threaded outlet.
Most popular related searches
drinking water
drinking water system
hydrant
polyethylene pipe
HDPE pipe
drinking water coating
EN standard
hydrant pipe
stainless steel pipe
Materials
- Black high density polyethylene PE100 TEE and pipe.
- Carbon steel tubing according to ISO 3183/API 5L, galvanised on the inside and on the outside according to UNI EN 10240-A1 (compliant with DM174 for compatibility with potable water,) and externally coated in a triple layer of black LDPE class R3R according to UNI 9099 (art.005)
- NBR 70 Sh. A O-ring on terminal, approved for gas and potable water (DVGW).
- Polyethylene dimensions according to UNI EN 12201-3, standard thickness SDR11.
- Polyethylene butt welding according to UNI 10520.
- Tee or reduced tee according to UNI EN 12201-3 for DE 90, 110, 125 hydrants.
- MKM welding according to UNI 7616.
- MKM fitting for DE 140, 160, 180, 200 hydrants.
- Polyethylene pipe according to UNI EN 12201-2.
- Tapered male terminal thread according to UNI EN 10226-1.
Additional features
- Approved for use on potable water systems according to M.D. 174 of 2004.
More information
- Metal/PE connection compliant with standard UNI 9736, with full bore passage and insulation against external infiltratio
- Tapping terminal with internal safety o-ring.
Standards
- UNI EN 12201-3
- ISO 4427-3
- UNI EN 10226-1
