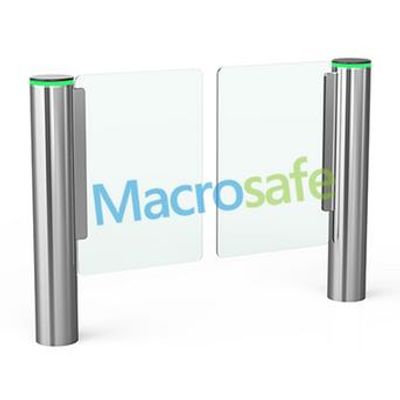

Macrosafe - Model MS06S -Speed Gate
With cylindrical compact and modern design, the MS04S speed gate is especially suitable for aisles, corridors, side doors and other places with limited spaces.but installs very easily. Click for attractive price now!
Most popular related searches
- Photoelectric sensors detects including unauthorized entry, tailgating, illegal intrusion, reverse intrusion, etc;
- With servo brushless motor, MCBF of it up to 10 millions;
- Different height of glass available can prevent pedestrians from climbing over;
- Short opening time of 0.3 seconds for a high throughflow frequency;
- Photoelectric sensors detect including unauthorized entry, tailgating, illegal intrusion, reverse intrusion, etc; Passage width from 600-1200mm, suitable for wheelchairs and prams Various LED indicators clearly show the passage direction and status;
- Can be integrated with any type of access control systems;
- Simple installation, operation and maintenance;
- Model No.: MS06S
- Cabinet Material: SUS304/316 stainless steel
- Swing Material: Plexi-glass or Tempered glass 168*1050mm
- Unit Dimension(W*L*H):
- Glass height (from floor): 1000mm Uni-directional/Bi-directional
- Passing Direction:
- Photoelectric Sensor: None 600-1200mm
- Passage Width:
- Opening/Closing: 0.5 seconds 35-40 person/min
- Flow Rate:
- Mechanism: Brushless motor/Sevo motor AC100-230V.50HZ
- Power Supply:
- Voltage: from the AC (100-240) V, 50/60 Hz from a DC source 24 V
- Application: Indoor and outdoor(Shelter)
- Working Temperature: -25°C~+70°C
- Operation Humidity: 0 - 95% (No freeze)
- MCBF: 10,000,000 cycles
- Anti-panic mode: Automatically open when power off
- Communication: Dry contact. Relay signal, RS485
