Madill - Model 172 -Large Tower Yarder

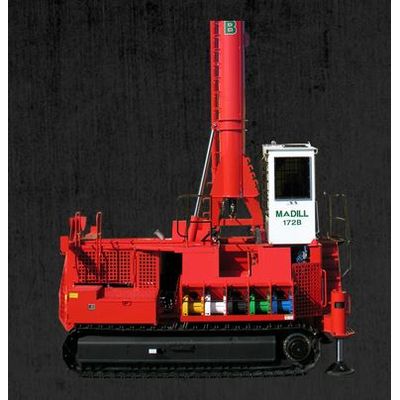

The Madill 172 is a large tower yarder. It is powered by a Volvo TAD1373VE 13 liter Tier 4 engine mated to an Allison S5620A Powershift transmission. The 172 has a 72 foot telescoping and tilting tower with hydraulic cylinders and offers 5 guylines as standard. Ideally suited to skyline carriage logging, this is the premium tower yarder in the industry.
Most popular related searches
WEIGHT
110,500 lbs (approx.; no lines, 100 gal fuel)
ENGINE
Detroit Series 60, 14.0 Litre, Tier III, 450 HP @ 2,100 RPM
TRANSMISSION
Allison S5620A Powershift
MAIN DRUM LINE SPEED
4,050 ft/min
GUYLINES
5 @ 250’ 1 1/8" line
TOWER REACH
72’ telescoping yarding tower
