GemmeCotti - Model HTM PP/PVDF -Mag-Drive Centrifugal Pumps
Mag drive centrifugal pumps series HTM PP/PVDF are made of thermoplastic materials (Polypropylene and PVDF) and are suitable for high corrosive liquids. Thanks to the innovative mag drive system, pumps model HTM PP/PVDF reduce the risks of losses and the maintenance costs. The transmission of the motion occurs through magnetic joints without using mechanical seals. This guarantees the maximum safety and efficiency. The pumped liquid has to be clean and without solids in suspension.
DESIGN OF MAGNETIC DRIVE CENTRIFUGAL PUMPS MOD. HTM PP/PVDF
Magnetic drive pumps have a particular sealless design that is suitable to pump corrosive and dangerous liquids thanks to the high chemical resistance and absence of leakage and emissions. The structure is really simple so that the pump requires a very reduced maintenance with consequent save in terms of repairing and spare parts costs during the pump life. The external magnet placed on the drive shaft transmits the motion to the internal magnet connected to the impeller which rotates and moves the fluid through the pump.
Typical applications:
- High corrosive liquids
- Toxic, noxious and carcinogenic liquids
Anti-corrosion industrial pumps suitable for pumping acids and bases fluids and highly corrosive liquids
- Materials available: PP / PVDF.
- Materials in contact with the liquid;
casing and impeller: PP or PVDF;
o-ring: EPDM (standard for PP pumps);
VITON (standard for PVDF pumps);
static shaft: Al2O3 99,7 % (pure ceramic);

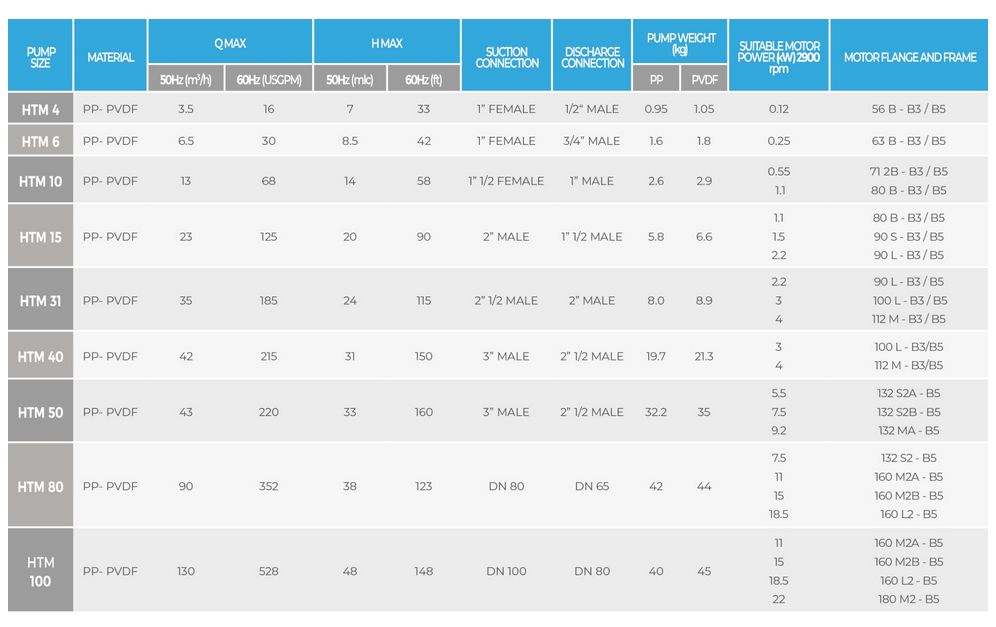

Bushing PTFEC. - Max flow: 130 m3/h; Max head 48 mlc.
- Temperature: PP: max 70°C – PVDF: max 90°C.
- Max viscosity: 200 cSt.
- Pressure rating: NP 6 at 20°C.
- High torque magnetic coupling NdFeB standard.
- Suitable for high corrosive liquids.
- Available in ATEX version for zone 2 II3G (mod. EM-C PP/PVDF)
- HTM pumps are available also for NEMA motors and with NPT connections.
