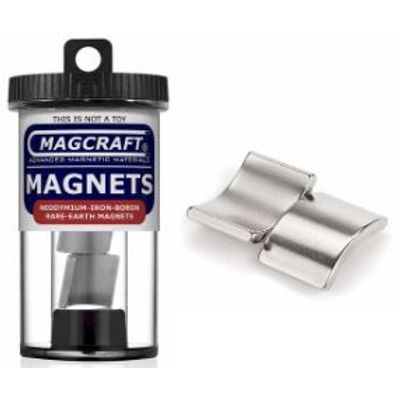

MAGCRAFT - Model NSN0627 -Rare-Earth Arc Magnets
Rare-Earth Arc Magnets, 0.75 in. Outside Radius x 0.625 in. Inside Radius x 90 in. Deg x 0.75 in. Long, N, 2-Count. Availability: In StockShips the same business day if order placed by 1:00PM ET weekdays. Retail Price Per Package: $11.99.
Most popular related searches
These 90 degree arc magnets are 0.75 inch (19.05mm) long and 0.125 (3.2mm) thick. They are composed of grade 40 neodymium iron boron magnetic material and are plated in nickel-copper-nickel for a shiny corrosion resistant finish. Max Working Temperature - 176 F (80 C).
- Part Number : NSN0627
- Imperial Dimensions : 0.75 inch outside radius x 0.625 inch inside radius x 90 deg x 0.75 inch long
- Metric Dimensions : 19.05 mm outside radius x 15.875 mm inside radius x 90 deg x 19.05 mm long
- Material : Sintered Neodymium-Iron-Boron (NdFeB)
- Shape : Arc
- Plating : Ni-Cu-Ni (Nickel)
- Magnetization Direction : Diameter
- Grade : N40
- Pull Force (lbs[g]) : [0]
- Surface Field(G) : 4551
- Maximum Operating Temperature : 80 Deg C (176 Deg F)
- Dimensional Tolerance : +/-0.005"
- Magnet Quantity : 2
- Volume (cm3) : 0
- Weight (g) : 8
- Brand : Magcraft
- Packaging : Magpak Tube
- UPC : 875661000276
- Remanent Flux Density Br (kG [T]) : 12.5-12.8 [1.25-1.28]
- Coercivity HcB (kOe [kA/m]) : >=11.3 [>=923]
- Intrinsic Coercivity HcJ (kOe [kA/m]) : >=12.0 [>=995]
- Maximum Energy Product Bhmax (MGOe [kJ/m3]) : 38-41 [302-326]
- Density p(g/cm3) : >=7.45
- Compression Strength (Mpa) : 600-1200
- Bending Strength (Mpa) : 150-380
- Vickers Hardness (HV) : 460-660
- Recoil Permeability (urec) : 1.05
- Electrical Resistance (Ohm*mm2/m) : 1.25-1.55
- Curie Temperature Tc (°C) : 310
- Thermal Expansion Coefficient 100°C//(x10^-6/K) : 6
- Thermal Expansion Coefficient 100°C?(x10^-6/K) : -1
