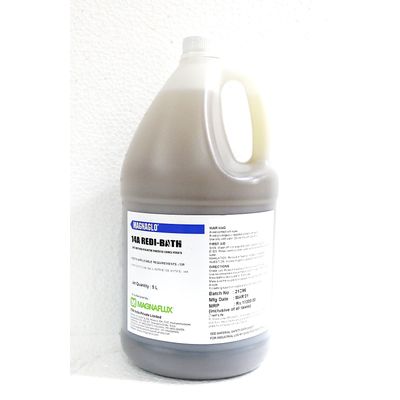

Magnaflux - Model 14A Redi-Bath -Water-Based Fluorescent Magnetic Particle Concentrate
14A Redi-Bath is a highly sensitive water-based magnetic particle liquid with for locating very fine discontinuities in critical parts during fluorescent mag particle inspection. A concentrated liquid with Magnaflux’s best-in-industry 14A magnetic particles with water conditioners and corrosion inhibitors, 14A Redi-Bath is designed to be diluted with water to make magnetic particle water bath. The ultra-sensitive 14A particles provide clear, bright, fluorescent green indications under ultra-violet black light for unbeatable inspection quality and accuracy, with superior corrosion protection. 14A Redi-Bath is an ideal choice for high-volume testing of machined parts, forgings and castings where the mag particle bath needs to be changed out frequently due to drag-in or heavy-use.
Liquid particle concentrate for fast bath prep High sensitivity Excellent fluorescent contrast Excellent particle mobility Optimized particle size and shape distribution Durable particles Easily dispersed Great concentration consistency Superior corrosion protection Non-foaming Easy post-testing clean up Superior surface wetting Even surface coverage and higher probability of detection.
- NDT TypeFluorescent Magnetic Particle Testing
- Particle Suspension VehicleWater
- Required EquipmentMagnetizing device, UV light source
- Ideal ApplicationAfter secondary processing, Critical applications, High volume testing, Machined parts, Mixing with hard-water, Smooth surface finish, Very fine to fine discontinuities
- Defect ExamplesFatigue cracks, Grinding cracks, Inclusions, Laps, Quenching cracks, Seams, Shrink cracks, Tears, Welding defects
- Standards : ASME BPVC, ASTM E1444, ASTM E709, NAVSEA 250-1500-1
