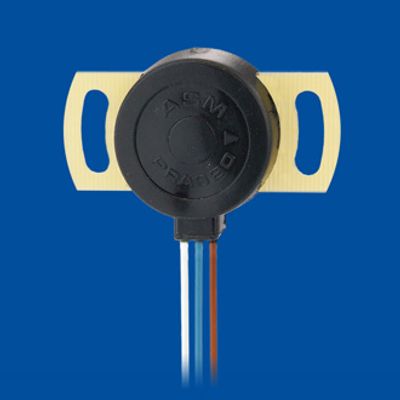

ASM - Model PRAS20 -Magnetic Angle Sensor
Absolute magnetic angle sensor up to 360 degrees in a flat housing Contactless with external position magnet Only 6 mm thickness Protection class IP60.
Most popular related searches
- Output : Voltage 0.5 … 10 V, 0.5 … 4.5 V
- Current 4 ... 20 mA, 3 wire
- PRAS20: redundant version available
- Measurement range : 0 ... 15° to 0 ... 360° (selectable in 15° increments)
- Resolution : 0.03 % (60 ... 360°), 0.1 % (15 ... 45°)
- Linearity : Up to ±0.5 % f.s. (typical)
- Repeatability : ±0.03 % (60 … 360°), ±0.1 % (15 … 45°)
- Housing material : Epoxy fiberglass, thermoplastic
- Protection class : IP60
- Connection : Single wire 3 x 0.5 mm2
- Weight : Approx. 8 g (without cable)
