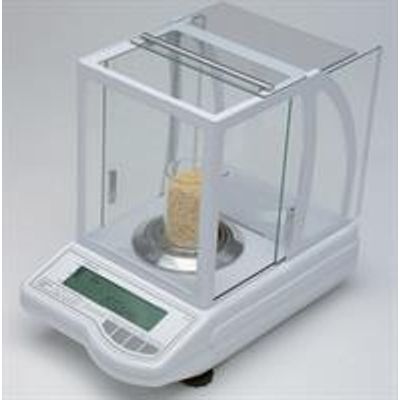

Crystal - Model 100 CAL CE -Magnetic Compensation Analytical Balances
FUNCTIONS AND CHARACTERISTICS: LCD display with small decimal digits. Membrane keyboard, water proof and solvent resistant, easy to use with TARE, ON/OFF, PRINT and MODE keys. Indication of the reached stable weight. Bar-graph indicator of dosage and remaining capacity of the balance. Parameters configurable by menu: reading in g (grams), lb (pound), oz (ounce), ct (carats), pcs (pieces), % (percentage). Full scale automatic calibration with internal and/or external mass. Weighing underneath the balance. Selectable response time “fast/slow” (see table).
Most popular related searches
water proofing
laboratory analysis
analytical balance
metrology
remote monitoring system
weight indicator
analytical laboratory
ON REQUEST
- CE version (legal metrology) according to Directive 2009/23 EC (only for “CAL” models)
- Liquids and solids density measuring devices
- Remote command to activate various signals: print, tare, etc.
- Executions with special capacity
- Capacity 110 g
- Readability 0,1 mg
- Linearity ± 0,2 mg
- Repeatability ± 0,05 mg
- Response time 6/10 sec.
- Data output I/O RS232 adjustable
- Pan dim. (mm) Ø 80
- Calibration Internal
- Operating temperature 15° ÷ 25°C for models with CE mark (Legal metrology)
- Power 100 ÷ 240 VAC
- Absorption 200 mA
- Dimensions (W x D x H) 216 x 380 x 335 mm
- Weighted room size (W x D x H) 180 x 150 x 200 mm
- Net weight (kg) 7
- Note metrological version according to 2014/31/UE
