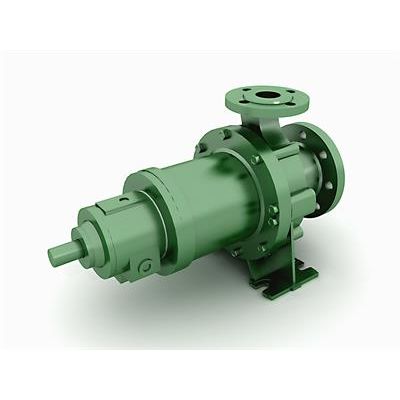

Colossus - Model CMC -Magnetic Drive Centrifugal Pumps

Applaction:

Chemical / Oil Refinery / Paper Pulp / Pharmaceutical Industries / Sugar Industries

Medium:

Clear/Low Fluid
High Temperature Fluid
Mid Corrosive Fluid Containing Minor Particles

Specification:

Flow : ≤1800 m3/h (≤7926 US GPM)
Head : ≤ 158m (≤519 FT)
Temperature : -80---260℃ (-112~500 ℉)
Power : ≤ 160KW (≤215 HP)
Pressure : 2.5 Mpa (≤363 PSI)

Structural Features:

Typical Horizontal Single Stage Suction Centrifugal Pump
Standard Suspension Structure Design
Clockwise Rotation (from the view of motor side)

Design Features:

Modular Design
Easy to change components and reduces repair costs.

Magnetic Rotors
Sealless pump using non-contacted magnetic rotors in replace of traditional mechanical seals reduces the excess load damages to the motor and pump.

No Lubricated Needed
Reduce energy consumption.

Long-Coupled Electromotor and Bearing Bracket
Reduces the vertical load to the motor and balances out the turbulence in the process of magnetic transmission.

Ceramic and Alloy Sliding Bearing
Reduce the frictional resistance and lose of mechanical power, and greatly increase bearing life.

Titanium Alloy Spacer Sleeve
This material has high electric-resistance and high magnetic permeability; this feature will reduce the eddy loss while ensuring the strength and corrosion-resistance.

Monitoring System
Provides automatic alarm system which will cut off the power in emergency situation. This effectively minimizes the environment damage caused by the leakage of hazardous and toxic medium, and save the energy.
