The processing industry is indeed under increasing pressure to evolve towards more sustainable and efficient practices. Process intensification, cleaner production, and continuous optimization are key strategies that address these challenges by aiming to make industrial processes more effective and environmentally friendly.

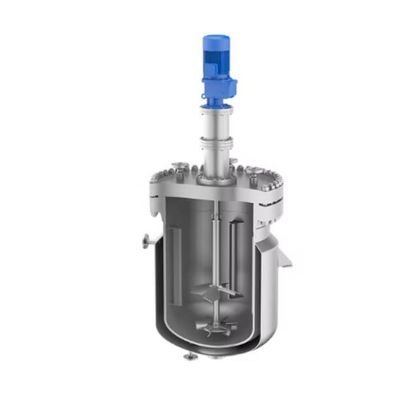

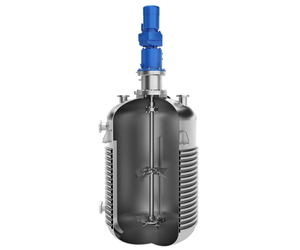

Top entry mag drive agitators available with torque up to 20,000 Nm. Suitable for very high pressure or high & low temperatures. Particularly suitable for dangerous applications.

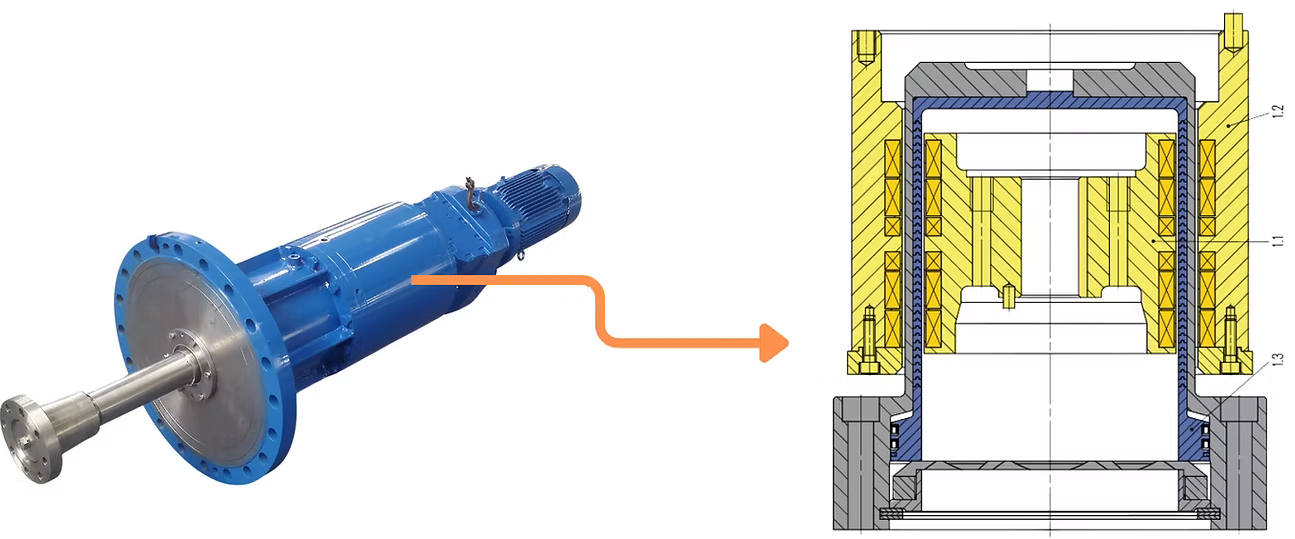

Sunkaier magnetic mixer consists of weld plate and a mixer unit including gear drive. The static male bearing is secured to the vessel`s tank plate and the ratating female bearing is integrated and sealed into the mixing head, or rotor, of the mixer.
Sunkaier magnetic mixers utilize sliding bearings between the mixing head and male bearing. These bearings are manufactured from Silicone Carbide(SIC) which is among the hardest substances known. Due to this hardness, it makes for an excellent long lasting bearing material for rotating equipment in wet environment.
Advantages of Magnetic Sealing Technology
- 100% sealing, ZERO leakage
- Long equipment life
- Touble free operation
- Zero emission of hazard fluids
- Minimal friction saves power
- Suitable for pressure fluctuation
Applications
- Hydrogenation
- Oxidationoz
- Onisation
- Carboxylation
- Amination
- Aminolysis
- Ethoxylation
- Similar Gas Slurry Reaction
- Pharma Industry
- Dyes&Intermediates
- Aromatic Chemicals
- Agro Chemicals Fine Chemicals
- Speciality Chemicals Industries
