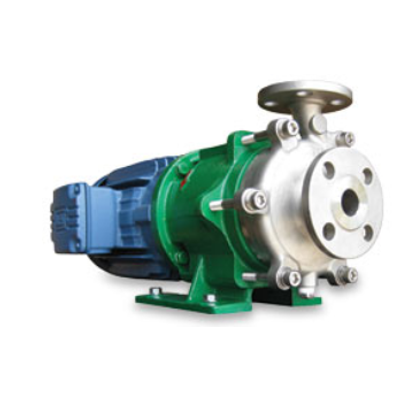

Magnatex - Model MP Series -Magnetic Drive Sub-ANSI Pumps

Materials of Construction

• Mag drive sealless pumps eliminate the need for expensive mechanical seals; eliminating costly shutdowns and repairs, which helps reduce "Reportable Release" issues.
• No maintenance intensive mechanical seals required. No seal flush or complex and expensive seal pot systems to monitor or maintain.
• Standard SiC-X bearing system for enhanced dry running capability
• Straddle-mounted, double bearing design reduces shaft load and bearing wear when compared to our competitors typical cantilevered, overhung designs
• Slip-fit construction allows easy maintenance and on-site repairs with no special tools required
• Large internal flow path handles solids: 1% at 500µ 5% at 100µ.
• Close-coupled configuration eliminates coupling and motor alignment issues.
• Handles toxic, noxious and corrosive liquids for leak-free pumping with increased safety to plant personnel and the environment
• Optional high-temperature construction to handle up to 660°F without cooling liquid

Materials of Construction

• 316SS
• Alloy 20
• Alloy B&C

• Maximum Flow: 150 GPM
• Maximum Head: 190 FT
• Liquid Temperature: -112° F to 660° F
• Maximum Power: 5 HP
• Connections: 150# RF Flanges
• Bearings: SiC/SiC-X
• Working Pressure: 150 psig
• Impeller: Enclosed
• Speeds: Up to 3550 rpm
• Magnets: Neodymium or Samarium Cobalt
• Motor: NEMA or IEC Frame Mounted
