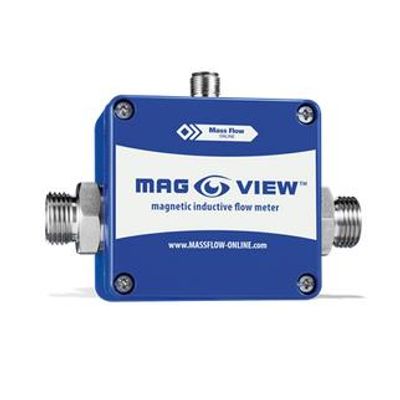

Mass Flow Online - Model Mag-View - MVM-060-PA -Magnetic Flow Meter

• Compact, weatherproof (IP65) design
• No moving parts (no mechanical wear)
• Interference free operation
• Independence to inlet/outlet pipework
• Fast response
• Free pipe cross section: low ΔP, insensitive to contamination

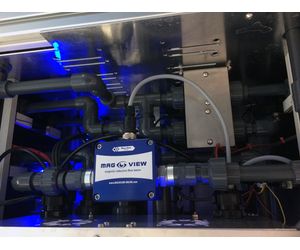

This magnetic flow meter is suitable to measure flows of water and other conductive liquids within a flow range of 0.2 .. 60 lpm.

Model: Min: Max: output signal starts

• MVM-060-PA: 0.2 l/min: 60 l/min: ~ 0.2 l/min

• Magnetic Flow Meter
• Calibration certificate
• Packing box
• MAG-VIEW Manual
• (optional) instrument cable

Measurement/control system:

• Flow range: 0.2..60l/min
• Accuracy: ±0.7 % of reading ±0.3 % of range
• Reproducibility: 1%
• Pressure rating: PN16
• Nominal diameter: DN10
• Flow/alarm indication: Green LED: flow proportional flashing
• Signal output starting from: ~ 0.2 l/min
• Medium: Water and other conductive liquids (minimum conductivity of 50 uS/cm)
• Medium Temperature: -20... 90 °C
• Rangeability: 1:60
• Response time (sensor): < 500 ms

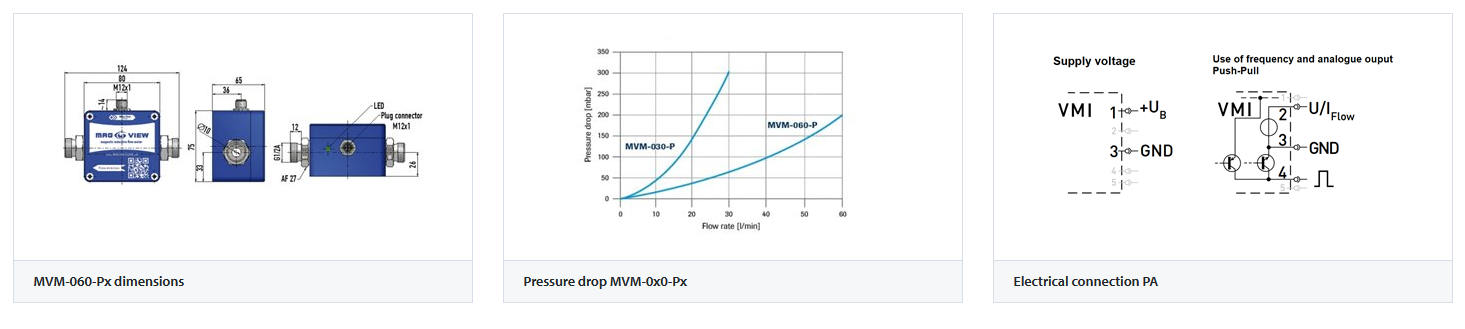

Mechanical parts:

• Material (wetted parts):
• Housing Aluminium pressure diecasted
• Electrodes: Stainless Steel 1.4571
• Process connections: Stainless Steel 1.4571
• Measuring pipe: PEEK-GF30
• Gasket: EPDM
• Process connections: GWBSP male thread
• Weight: 0.75 kg
• Ingress protection: IP65 and IP67 with MFO.CB.25

Electrical properties:

• Power supply: 12..24Vdc±10%
• Max. power consumption: max. 150mA
• Frequency output:
• Pulse rate / K-factor: 10000 pulses/I
• Resolution :0,1 ml/pulse
• Signal shape: Push-Pull
• Signal shape: Square wave signal, pulse duty ratio 50:50, Push-Pull
• Signal current: max. 100 mA, current limited
• Pin assignment:
• PIN1:+UB
• PIN 2:-
• PIN3:GND
• PIN 4: frequency output
• PIN 5: do not connect
• Electrical connection: 5-pin-plugM 12x1
