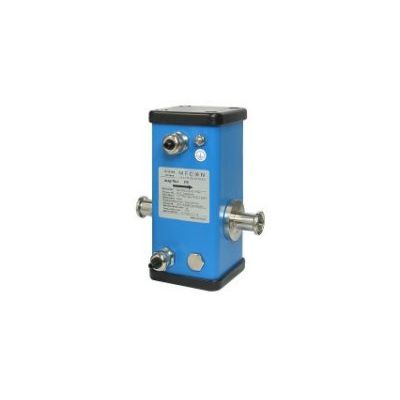

Mecon Mag-flux - Model F5 -Magnetic Inductive Sensor (MID)

Area of application:

Typical applications of the mag-flux F5 flow meter are measuring very small quantities and metering chemicals and pharmaceuticals.

The magnetic-inductive sensor is used in the following industries:

• Plant and mechanical engineering
• Chemicals
• Laboratory and medical technology
• Food
• Water and wastewater

Advantages of the magnetic-inductive flow meter for measuring very small quantities:

• Reliability (long-term stability, service life)
• Minimal maintenance requirements
• Simple commissioning
• High measurement accuracy
• Flexible installation position (however the measuring tube must be completely full at all times)
• Manufacturer’s application expertise
• Short lead times

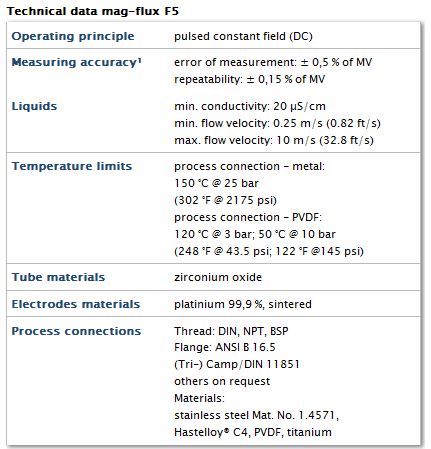

Special features of the flow meter:

• Measuring tube made of highly corrosion and temperature-resistant zirconium oxide
• Measuring tube internal diameter from 2 mm (0.078")
• Robust and interference-free thanks to sealed steel casing

Very low measuring ranges:

• 0 to 5 l/h (0 to 0.022 USgpm) for d.c. measurement
• 0 to 3 l/h (0 to 0.0132 USgpm) for a.c. measurement

Very low minimum conductivity:

• 10 μS/cm for d.c. measurement
• 0.1 μS/cm for a.c. measurement

Various process connections:

• Threads: DIN, NPT, BSP
• Flange: DIN, ANSI, JIS
• Clamp
• DIN 11851
• Others on request

Various process connection materials:

• M. No. 1.4571
• Hastelloy C4 M. No. 2.4610
• PVDF with in Hastelloy C4 M. No. 2.4610 earthing ring
• Titanium
• Others on request
