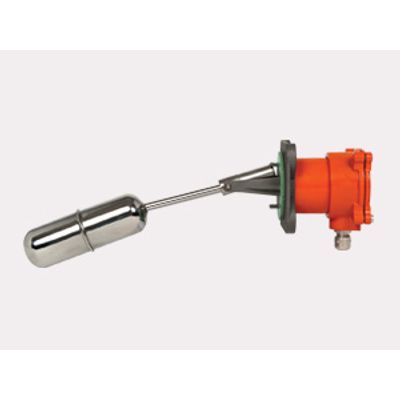

Kayse - Model F1 I Type -Magnetic Level Switches

Pressure ( Pmax ): PN10. Temperature ( Tmax ): -20 °C + 150 °C. Liquid Contact Surface: AISI 316. Connection Types: Square Flange. Terminal Box / Float: Aluminium / Ø50 mm. Regulation: 100mm / 200mm / 300mm. Electrical Connection: NO + NC Dry Contact 250 VAC - 24 VDC / 15 A max. Changeover Switch.
