IVERNA - Model Sugarlift -Magnetic Lid Lifter
FromIverna 2000 S.L.
SUGARLIFT is the new magnetic lid lifter device by IVERNA. This is a versatile lever system with trolley that incorporates a neodymium magnet, one of the most powerful in the world, guaranteeing along with a comfortable ergonomic polypropylene handle, an easy and safe lifting, displacement and repositioning of sewer;manhole covers or drains. The lever system is operated by pressing downward and not directly raised like traditional key systems, thereby reducing muscle and back injuries. Thanks to its lightness it can be used without problems by anyone and transported without taking up space thanks to the portable option.Most popular related searches
cast iron manhole cover
manhole cover
safe lifting
sewer manhole
manhole
hook lift
lifting device
sewer drain
manhole lifting
drain cover
- Off-road system with large diameter flat tires and linear bearing. This system allows SUGARLIFT to be used on site at different heights, on the road or sidewalks.
- Neodymium magnet ideal for effortlessly lifting conventional steel and cast iron manhole covers up to 100Kg weight.
- Practical and simple design. Thanks to the high impact polypropylene non-slip handle with calibrated steel core, it allows a perfect grip.
- Robust body made of galvanized steel.
- High visibility tapes to work in areas with traffic.
- Possibility of lifting flat and cylindrical surfaces.
- Steel body made of two removable pieces of 1 meter each, to achieve a folding device easy to transport in working vans.

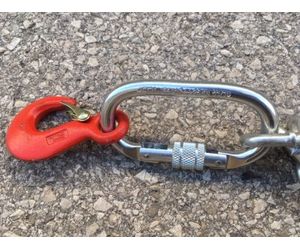

- Possibility of adding extra shackle complement with two homologated hooks for lifting concrete covers.
- Light device, with only 10.5Kg.
- Join the carriage piece with anti puncture tires in the central part with the steel lever section, using two clamping knobs.
- Anchor the chain to the end of the device using our approved shackle.
- Join the neodymium magnet at the end of the chain. After that, locate the magnet on the flattest area of the manhole cover.
- Activate the neodymium magnet by operating the attached lever.
- Push down with the orange polypropylene handle to finally lift the manhole cover without any effort.
If you want a completely versatile device, IVERNA also supplies complementary accessories to lift heavy concrete manchole covers and lids. For those cases in which the neodymium magnet is not functional, it can be replaced by a set of approved hooks with additional shackle to add to the chains and regulate the distance conveniently.
