Sunkaier - Model MAG 100 -Magnetic Mixer
FromSunkaier
MAG 100 side entry mixer is specially designed new product to upgrade SK100 side entry mixer from SUNKAIER used in the edible oil industry for leakage free.
Most popular related searches
side entry mixer
magnetic mixer
industrial mixer
mixing system
toxic chemical
water treatment
safety can
side-entry agitator
water treatment mixer
medium tank mixer

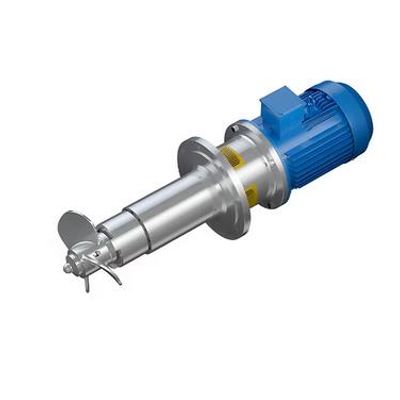

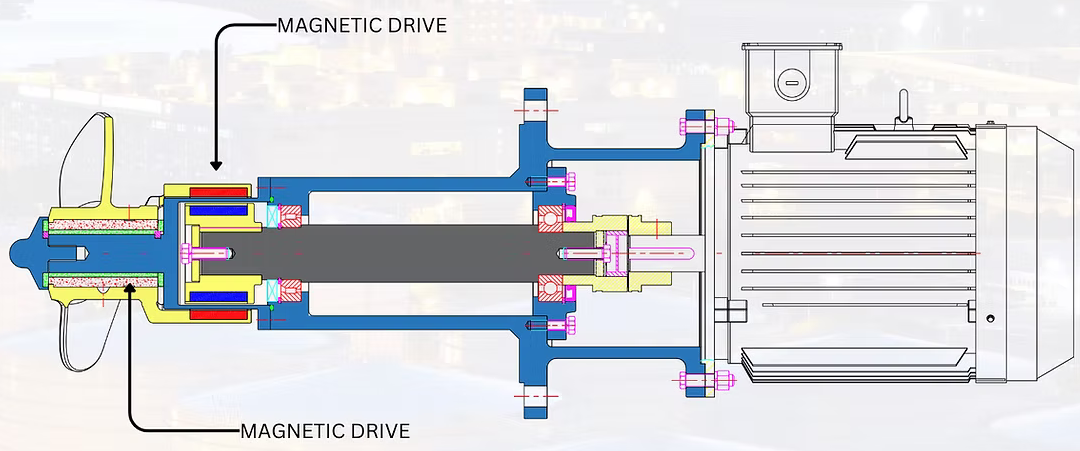

GM100 Magnetic Drive Mixer is a type of industrial mixer designed for side or bottom entry applications requiring high reliability, leak-free operation, and efficient mixing. It utilizes a magnetic drive system to transmit torque from the motor to the impeller without the need for a mechanical seal, making it ideal for handling corrosive, toxic, or sensitive fluids.
MAIN DESIGN FEATURES
MAG 100 side entry mixer is specially designed new product to upgrade SK100 side entry mixer from SUNKAIER used in the edible oil industry for leakage free.
- No Mechanical Seal: Eliminates wear and tear associated with seals, reducing maintenance costs.
- Containment: Prevents leaks, ensuring environmental and operator safety.
- Customizable: Can be tailored to specific process requirements.
- Considerations:
- Initial Cost: Magnetic drive mixers may have a higher upfront cost compared to traditional mixers.
- Power Limitations: The magnetic coupling may limit the maximum torque and power transmission, making it less suitable for extremely high-viscosity applications.
- Chemical Processing: Mixing corrosive or toxic chemicals.
- Pharmaceuticals: Handling sensitive or sterile materials.
- Food and Beverage: Mixing ingredients without contamination. Edible oil storage tank side entry mixer.
- Water Treatment: Agitating and mixing treatment chemicals.
