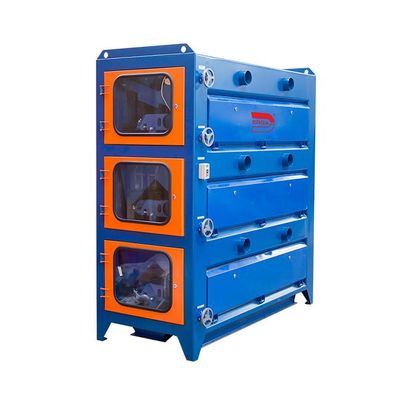

Erga RollMag - Magnetic Roll Separator
ERGA RollMag high intensity magnetic separator for dry mineral processing and high-quality cleaning of materials from weakly magnetic particles.
- High quality separation of weakly magnetic minerals
- Highly efficient NdFeB magnetic system
- Easy assembly and operation
- Operating temperatures up to +180*C
- Automatic cleaning
- Production automation
- Robust proven design
- Dry separation method
High intensity magnetic separators ERGA RollMag provide dry mineral processing and high-quality cleaning of materials from weakly magnetic particles.
High quality separation
Individually selected RollMag 1, 2, 3 models for one-, two- or three-stage separation with corresponding number of magnetic rolls guarantee high-quality processing of both nonmagnetic (quartz sands, feldspar, kaolin raw materials, semolina, etc.), and magnetic (titanium zirconium sand, chromite ore, manganese ores, etc.) materials.
Highly efficient NdFeB magnetic system
Unique patented magnetic system provides increased magnetic intensity on the operating surface up to 1.7 T (17000 G) without power consumption for magnetic field generation, unlike electromagnetic analogs.
Easy assembly and operation
The control systems in magnetic separators of RollMag 1, 2, 3 series are optimized for easy setting of equipment operating modes. ERGA RollMag can be connected to aspiration systems for dust removal. Special thin Kevlar belts with self-tensioning and alignment system can be quickly installed or replaced in just 5 minutes.
Operating temperatures up to +180°C
Application of special NdFeB alloys and high-temperature materials in RollMag separator construction parts provide efficient operation at product temperatures up to +180°C.
Automatic cleaning
Cleaning of raw materials from weakly magnetic impurities is automatic without personnel involvement. Continuous removal of magnetic inclusions in automatic mode improves separation quality.
Dry separation method: pure economy!
High intensity separators ERGA RollMag allow for replacement or supplement existing equipment, improving the quality of material separation with less power consumption and no time and money spent on water and drying**.
** comparing to wet separation method
Robust design -guaranteed result!
The robust design of high intensity roll separators ERGA RollMag, proven by the experience of numerous installations in various industries, is compact in comparison with electromagnetic analogs and has convenient and easily accessible adjustment of the separation process.

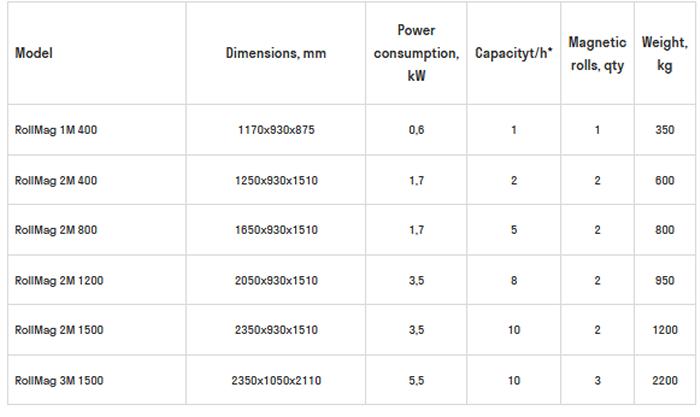

Series-produced models of RollMag separators are given in the table. It is recommended to use DrumMag M series drum magnetic separators to remove strongly magnetic component of the material before it is fed to roll separators of SMVI-1, -2, -3 series. Customized solutions can be designed according to the order requirements.
