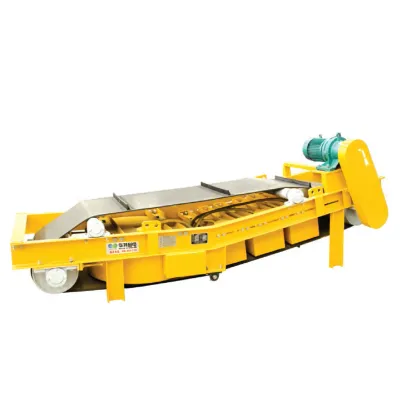

Huate - Model HTK -Magnetic Separator for Eliminating Waste Iron from Ore

SHARE
The HTK Magnetic Separator, designed by Huate, is a robust solution for eliminating waste iron from original ore, sinter ore, pellet ore, and block ore conveyed on belts. This separator employs an optimally simulated magnetic field design and works in tandem with a metal detector, ensuring automatic iron detection and separation with minimal ore interference. It offers intermittent excitation that results in low-energy consumption, delivering stable and reliable performance. A multi-stage repeated magnetic separation process ensures thorough ferromagnetic material removal, safeguarding downstream equipment like crushers. Additionally, the device features automatic iron unloading, easy maintenance, and a drum-shaped design with deviation correction functions. It operates with special fully sealed bearing seats suitable for dusty environments, ensuring long-term, trouble-free operation. The system boasts excellent compatibility, complete functionalities, and both manual and centralized control options, accommodating a wide range of operational requirements.
Most popular related searches
magnetic separation
iron separator
metal detection system
can separator
belt conveyor
pelletizer
pelletizing
ore crusher
electromagnetic separation
  1. Optimal magnetic field design with computer simulation for efficient iron separation.
  2. Works with metal detectors for automatic iron detection and separation without leakage.
  3. Low energy consumption with intermittent excitation and stable, reliable performance.

It can be used to eliminate the waste iron from the original ore, sinter ore, pellet ore, block ore and others on the conveying belt. It can separate ferromagnetic materials with the least ore to protect the crushers.


  • The design of the magnetic field in this system was selected based on the optimal computerize simulation.
  • Used in conjunction with a metal detector to form an automatic iron detection and separation system without iron leakage.
  • Intermittent excitation,low energy consumption, stable and reliable performance.
  • The sorting area adopts multi-stage repeated magnetic separation to ensure a small amount of ore during iron separation.
  • Automatic iron unloading, simple maintenance, drum-shaped structure, automatic deviation correction function, special fully sealed bearing seat, suitable for dusty on-site occasions, can achieve long-term trouble-free operation.
  • The product has good compatibility, complete functions, manual and centralized control functions, and can meet the requirements of various occasions.
