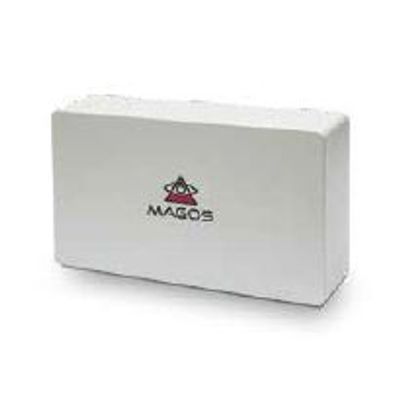

Magos - Model SR-150 -Radar Sensor for Small Perimeters
Magos’ SR-150 is our most cost effective perimeter protection solution for smaller sites not requiring long range detection without compromising on detection performance at all conditions. By utilizing state of the art MIMO & Digital beam forming technology It covers an area of more than 23,500m2 (6 acres) with a detection range of up to 150m, yet consumes extremely low power (
- All-weather 24/7 Cost effective solution for smaller sites in need of high level security
- Lower initial investment and Reduced operating costs – No moving parts and Wide Area coverage
- 6 acre wide area coverage: 120 ° (horizontal) x 30° (vertical) detection up to 150m/500 ft
- Install three SR-150 and one PTZ-Camera for all weather cost effective 360° solution covering 18 acres
- Integrated with most VMS platforms
- Auto PTZ slew-to-cue integrated with most PTZ brands
- Edge processing driven extreme power & data efficiency: easy solar+ wireless integration
- Easy installation & commissioning with MASS Wizard site builder
- Integrated with MASS+AI - minimal nuisance alarms with AI based target classification
Sensor type High res. solid state Ground Based Radar
Frequency C-Band
Detection range Up to 150m
No moving parts MTBF of 50,000 hours
Built in tracker Extremely low required bandwidth (<1kbps)
Scan rate 3 scans per second
Azimuth coverage 120º
Elevation coverage 30º
High Range accuracy <1.0m
Azimuth accuracy 1º
Target detection speed 0.3 – 30 m/sec
Power 48V, 3.5W
System interface Ethernet, POE - IEEE 802.3at Type 1
(802.3af) &Type 2
Dimensions 250(w) x 150(h) x 59(d) mm /
9.8(w) x 5.8(h) x 2.3(d) inc
Weight 1.5 Kg / 3.3lb
Approvals CE, FCC, UL
Operating temperature -400
- +850 C
