Maid Labs Technologies Inc.
Maidlabs - Model MLISO420 -Current Loop Isolator 4-20 mA
Easy to use. No distortion in long distance signal. Dimensions: 3.2 in x 1.75 in x 0.5 in (82 mm x 45 mm x 12.5 mm). Efficiency Grade: 0.1 / 0.2. High precision, error and non-linearity < 0.1%. 4-20 mA international standard current signal input and output. 3KV isolation between input and output. Temperature Range:-25°C ~ +70°C. Standard DIN Rail35 package, super slim (12.5mm). Multi-turn potentiometer to adjust signal output if needed.
Most popular related searches

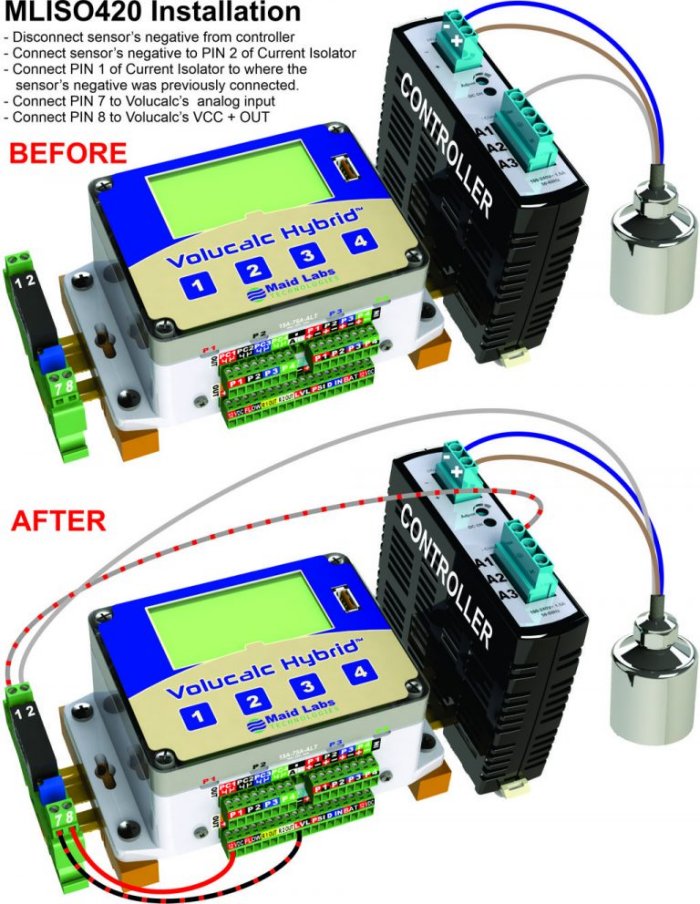

- Designed to isolate a 4-20 mA signal from the instrument who reads its value, like the Volucalc RT.
- DC current/voltage signal isolation and transmission.
- Equipment and sensor signal acquisition.
- 4-20 mA signal isolation and transfer.
- Ground-loop elimination.
