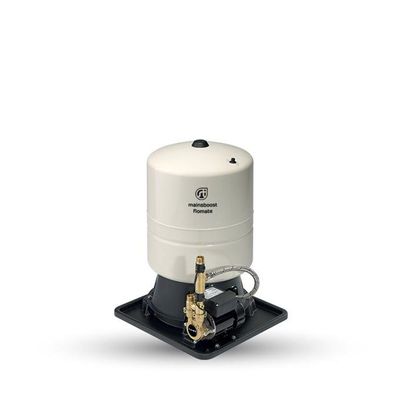

Stuart-Turner - Model Flomate MBF 80 -Mains Boost System
FromStuart Turner
FLOMATE MBF 80 can be connected directly to the incoming mains and will deliver up to 16 litres/minute flow at 3.2 bar pressure to multiple outlets within the property, up to the preset cut-in limit of the 60 litre pressure vessel, at which time the system will deliver 12 litres/minute until demand ends and the pressure vessel recharges. Designed for low occupancy properties with one bathroom and fits neatly within a standard 500 mm kitchen base unit.
Most popular related searches
flexible hose connection
epoxy coating
flow switch
ambient air
WRAS
membrane pressure vessel
floor drying
water mains
peripheral pump
noise protection
- 3 year warranty
- Output flow rate up to 16 litres/minute
- Increases mains water pressure up to 3.2 bar
- 60 litre pressure vessel
- Quiet operation
- WRAS approved product
- Built-in bypass
- Automatic switching
- Dry run protection
- Continuously rated
- Robust brass construction
- Patent protected
- Product Code: 46634
- General:
- Warranty: 3 years
- WRAS: WRAS Approved Product (2005033)
- Conformity Certification: UKCA, CE
- Features:
- Pump type: Peripheral
- Flexible hoses: 2
- Pressure vessel nominal size: 80 litres
- Pressure vessel usable capacity: 44 litres
- Upstream line-in kit: 15 mm
- Mounting: Floor or plinth
- Dry run protection:
- Typical noise: From 46 dB(A)
- Materials:
- Pressure vessel: Epoxy coated steel
- Membrane: Butyl rubber
- Pump body: Brass
- Impeller: Brass
- Mechanical seal: EPDM / PTFE / Al. Oxide
- Performance:
- Maximum head - closed valve: 3.2 bar (32 metres)
- Maximum flow: 16 l/min
- Maximum working pressure*: 450 kPa (4.5 bar)
- Maximum ambient air temperature: 40 oC
- Min / Max water temperature: Min 4 oC / Max 35 oC
- Flow switch sensitivity: 0.6 l/min (approx)
- Connections:
- Connection - inlet: G ¾ M
- Connection - outlet: G ¾ M
- Flexible hoses:
- Connections: G ¾ female x 15 mm push-in x 200 mm long
- Motor:
- Type: Induction (auto-reset thermal trip)
- Duty rating: Continuous (S1)
- Electrical:
- Power supply (Vac/Ph/Hz): 230 V a.c. / 1 / 50 Hz
- Power consumption - P1: 365 Watts
- Current - full load: 1.7 Amps
- Fuse rating: 5 Amps
- Power cable length: 1.5 metres (pre-wired)
- Physical:
- Enclosure protections: IPX4
- Width: 480 mm
- Depth: 457 mm
- Height - excluding hoses: 852 mm
- Weight - including fittings: 23.9 Kg
- Weight - filled: 67.9 Kg
- Weight - maximum: 103.9 Kg
- GTIN 13 DIGIT: 5050400466345
- *: The maximum pressure that can be applied to the system under any installation conditions.
