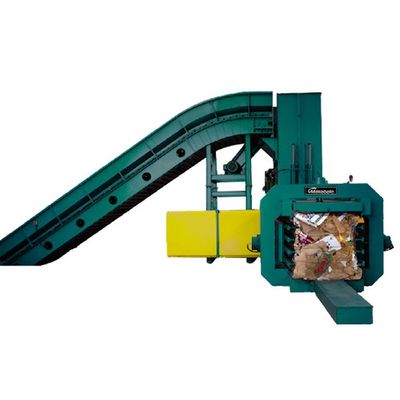

Makabale - Auto-Tie Horizontal Baler

What`s convenient about this baler for you is that the whole process is fully automatic and is continuous without you or your staff needing to watch over it.

All the steps, including material feeding, material compressing, wire threading, twisting, bale tying, up to the completed bale being ejected out of the baler chamber, are fully automated.

The only thing that your staff has to oversee is when the material is loaded into the conveyor. Then afterwards, when using the forklift to transfer the completed bales to the location that they are to be stacked.

Heavy duty and sturdy construction is the make of this auto tie horizontal baler. It contains the most advanced hydraulic systems and the most reliable computer-generated electrical system. This ensures user friendly mechanisms and many years of efficient service for your baling needs.

The programmable logic controller and the intelligent color touch screen provide you with many useful functions such as bale count, bale length setting, diagnostics and more.

This auto tie baler line is capable of producing up to 16 tons per hour (OCC). It typically bales large amounts of recyclable materials that are consistently dense and easy to move, stack and then eventually relocate. Makes for efficient and profitable baling operations which ably complements your regular income stream.

• Continuous material loading, automatic compressing cycles, bale tying and ejecting means fully automatic solution for efficiency and high productivity
• Three-cylinder tension system automatically leverages and generates tensioning force from all sides on the baled materials to ensure high dense bales on all kinds of materials
• Photoelectric sensor activates the ram to move automatically when the chamber is full of material
• Unique double shear blade design improves efficiency and prolong blade life
• Trunnion mounted and ball end design of main hydraulic cylinder eliminate the torque on the rod and extend the seal life
• Special automatic tying system for easy cleaning and maintenance
• Differential technique on hydraulic system shortens the cycle time, improves operation efficiency, and save power
• The baler hopper has viewing windows and access doors on both sides
• Adjustable bale length to meet your different bale size requirements
• Programmable logic controller for operation efficiency and accuracy
• Color touch screen provides lots of functions such as bale settings and diagnoses
• Interlock system for safety
• Air or water cooler for cooling down oil temperature to protect your valuable machine in high ambient temperature
• Electric panel control for easy operation
• Cyclone feeding is optional for sucking trimmings or shreds into the balers
• Fluffer is optionally mounted on top of the feed hopper to break up the bundled newspapers or magazines and distributing them evenly into the baler chamber and make more uniform bales
• Unjamming cylinder is optional for automatically clearing the stuck material in front of the cutting edge
• Bale exit guide is optional for the convenience to remove the finished bales faster
