Mako Industries

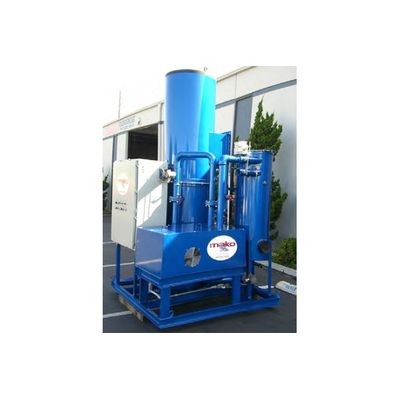

Makotherm - Model 500 CFM -Thermal Catalytic Oxidizer/Medium Vacuum System
FromMako Industries
Small Footprint Skid Mounting, Entrained Liquid Separator, Dilution / Process Valves, Stainless Steel Transfer Pump, Positive Displacement Blower, Blower Re-circulation Valve, 20 Horsepower TEFC Motor, Sound Enclosure, Oxidizer Chamber, Excess Air Packaged Burner, Supplemental Fuel Train, Flame Arrestor, Digital Temperature Controller, Digital Dilution Controller, Pitot Tube / Pressure Transmitter, Digital Chart Recorder, UL Listed Electrical Enclosure E306379.
Most popular related searches
catalytic oxidizer
catalytic oxidation
digital temperature controller
positive displacement blower
catalytic thermal oxidizer
thermal oxidation
thermal oxidizer
chart recorder
pitot tube
sound enclosure
Standard Options
- Trailer Mounted System
- Stainless Steel Heat Exchanger
- Platinum Coated Catalyst Cell
- Remote Telemetry
- Totally Enclosed System
- Single Phase System
- UL Listed Electrical Enclosure E306379
Standard Performance Specifications
- Skid Dimensions = 7` Width x 7` Length x 13` Height
- 3/16" Heavy Duty Steel Construction Throughout
- Electrical Requirement = 208/240 Volt/3 Phase/100 Amp
- Electrical Requirement = 208/240 Volt/1 Phase/200 Amp
- Fuel Requirement = LPG or Natural Gas / 5 PSI / 750SCFH
- Process Flow = 500 CFM and up to 12" Hg. Vacuum
- VOC Loading = 15,000 PPMV Maximum
