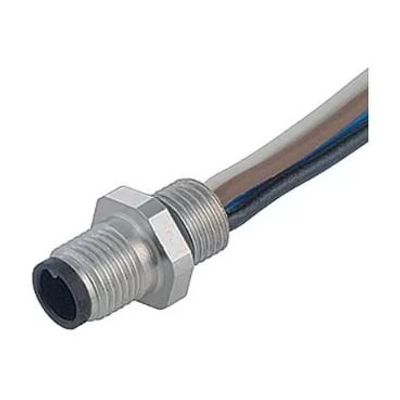

Binder - Model M5, Series 707 -Male Panel Mount Connector
M5 Male panel mount connector, Contacts: 3, unshielded, single wires, IP67. M5, series 707, Automation Technology - Sensors and Actuators.
Most popular related searches
- Connector design : Male panel mount connector
- Type standard : DIN EN 61076-2-105
- Version : Connector pin straight
- Connector locking system : screw
- Termination : single wires
- Degree of protection : IP67
- Cross-sectional area : 0.14 mm² / AWG 26
- Temperature range from/to : -25 °C / 80 °C
- Mechanical operation : > 100 Mating cycles
- Weight (g) : 2.46
- Customs tariff number : 85369010
- Country of Origin : DE
- Rated voltage : 60 V
- Rated impulse voltage : 800 V
- Rated current : 1.0 A
- Insulation resistance : > 108 Ω
- Pollution degree : 3
- Overvoltage category : II
- Insulating material group : I
- EMC compliance : unshielded
- Contact body material : PA
- Contact material : CuZn (brass)
- Contact plating : Au (gold)
- REACH SVHC : CAS 7439-92-1 (Lead)
- SCIP number : 3257bba6-022c-4895-b3f7-d31ba5e66624
