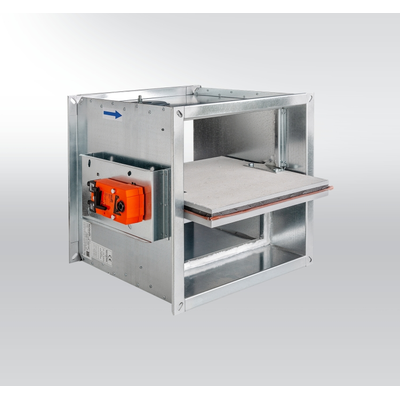

Mandík - Model SEDS -Single Compartment Smoke Control Damper
FromMandík, a.s.
SEDS – Single comparement smoke control damper allows usage in smoke control ducting systems. Suitable for heat and smoke extraction from one comparement.
Most popular related searches
- Square dampers from 180 × 180 mm to 1600 x 1000 mm
- CE certified acc. to EN 12101-8
- Tested in accordance with EN 1366-10
- Classified acc. to EN 13501-4
- ES 90/600, activation AA
- External Casing leakage class ATC 3, Internal leakage class 2 acc. to EN 1751
- Cycling test in class C 300 acc. to EN 12101-8
- Damper actuating by electrical actuator
- Max. air speed in the system of 15 m/s, allowed pressure up to 500 Pa, or underpressure up to - 1000 Pa
