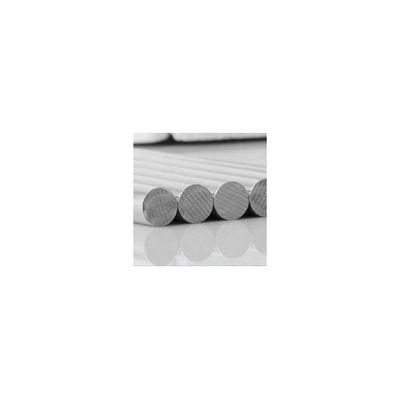

Manifold - Model SMO 254 -Round Bar

A high pitting resistance number indicates that the stainless steel grade has a high resistance to localized corrosion like pitting.The stainless steel is considered to be a very high end grade due to its higher strength as compared to other conventional austenitic stainless steel grades.The 6mo UNS S31254 Bar has good weldable properties.

Alloy 254 SMO Bar is mainly comprised of 19.5% and 20.5% chromium, 17.5% to 18.5% nickel, 6% to 6.5% molybdenum like standard austenitic stainless steel grades. But unlike convention austenitic stainless steel grades, the ASTM A479 UNS S31254 contains about 0.18% to 0.22% nitrogen. The specific levels of Chromium, Nickel, Molybdenum and Nitrogen in its super austenitic 1.4547 Round Bar chemical makeup allows the SMO 254 Welding Rod to combine its impact toughness resistance to corrosion cracking, with pitting and crevice corrosion resistance. The result is strength of the 254 SMO Rod nearly twice that of 300 series stainless steels.

The UNS S31254 or the SMO 254 Round Bar is often referred to as a “6% Moly” grade due to the content of molybdenum. The 254 SMO Round Bar has the ability to withstand high temperatures while maintaining its high strength under volatile conditions. This grade is used successfully in various applications such as Flue gas desulfurization and Chemical environments. Other applications of the 6mo UNS S31254 Bar include Chemical processing equipment, Flue gas desulfurization scrubbers, Desalination equipment, Seawater handling equipment, Food processing equipment, Heat exchangers, Hydrometallurgy, Pulp mill bleach systems, Tall oil distillation columns and equipment & Oil and gas production equipment.

• 254 SMO Material Grade: SMO 254 Round Bar
• 254 SMO Square Bar Dimensions: DIN, EN, ASTM, JIS, ASME, BS, AISI
• SMO 254 Standard: ASTM A479, ASME SA276 / ASTM A479 ASME SA479, A279
• 254 SMO Hex Bar size: 2-100mm A/F
• 254 SMO Round bar size: Diameter: 3-~800mm
• SMO 254 Flat bar size: Thickness: 2 -100mm
• Width: 10 to 500mm
• 254 SMO Angle bar size: 3mm*20mm*20mm~12mm*100mm*100mm
• 254 SMO Square bar size: 4 to 100mm
• 254 SMO Channel Bar: 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness
• 254 SMO Rectangular Bars Section: 3.0 to 12.0mm thickness
• 254 SMO Threaded Bar Billet Size: 1/2 to 495mm Diameter
• 254 SMO Rectangles Size: 33 x 30mm to 295 x 1066mm
• ASTM A479 UNS S31254 Hollow Bar: 32mm OD x 16mm ID to 250mm OD x 200mm ID)
• ASTM A479 UNS S31254
• Hollow Bar Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
• SMO 254 Hex Bars Finish: Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
• SMO 254 T-Bar Surface: Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished
• Rolled 254 SMO Flat Bars Condition: Hardened & tempered, annealed
• ASTM A479 UNS S31254
• Cold Rolled Bar Technique: SMO 254 Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod
• SMO 254 Rod Processing: Bar cutting to 650mm
• SMO 254 Rounds Bar Form: Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc.
• Our SMO 254 Round bar conforms to NACE MR0175/ISO 15156
