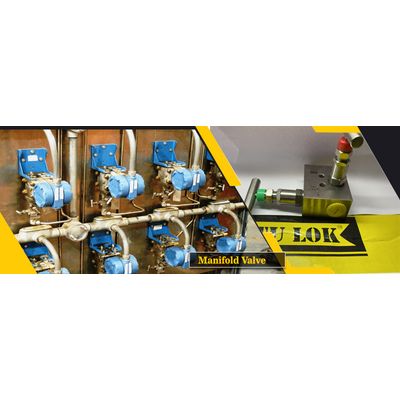

Manifold Valves
Buy Instrument Solenoid Valve In Various Brand incuding SMC/ Swagelok/ Rosemount 305 at lowest possible price. Similarly, an Air Manifold With Valves enables the installation of multiple solenoid valves in a centralized location. A single air supply and port are shared by several valves. Manifold Check Valve acts as a central distribution point for aircraft that have dual dry air pumps. If one pump of Manifold Pneumatic fails it is designed to isolate the failed pump and provide continuous airflow from the operating pump. Water Manifold With Valves is designed to distribute water and has built-in ports in a section of pipe. They act as control centers of water distribution in the house.
Solenoid Valve Manifold has a maximum standard pressure of 6000 psi at 100 degrees F and has a mounting hole that helps in the self-supporting application. Hydraulic Valve Manifold Has a stainless steel pin that prevents the bonnet from detaching itself from the body due to vibration. Ball Valve Manifold has a burr-free thread that reduces internal surface leaks thus providing accurate transmitter read. No O-ring is used bonnet to body Pressure Transmitter Manifold seal. It is a metal-to-metal seal. Hydraulic Valve Manifold Block has the option of panel mounting.
There are different Types Of Manifold Valves available in the market however the most commonly used ones are the 2 valve, 3 valve, and 5 valve assemblies. Swagelok Manifold is designed specifically for liquid level, static pressure, and differential pressure applications. Smc Valve Manifold has a combined isolating and venting in a single valve that eliminates the need for tubing and fitting. Festo Valve Manifold is easy to assemble and install and is reliable. They have dust caps fitted on them that contain stem lubricant and prevent the ingress of contaminants. Rosemount 305 Manifold eliminates the need for a flange as it fits directly to the patented Rosemount.
A manifold valve is an add-on for pressure transmitters and differential pressure transmitters. Manifold Valve Manufacturer In India recommends these valves since the manifold in the tools allows the tool to calibrate or change without the need to shut the plant. A Solenoid Manifold works on a similar line it has a spring, coil winding, and a plunger that directs the flow of fluid. On the other hand Instrument Manifold is a process connection system that provides isolation venting, and equalizes the pressure in the measurement application.
- Maximum standard pressure up to 6,000 psig @ 100°F (414 bar @ 38° C)
- Mounting holes provided for self-supporting application.
- 316 stainless steel pin prevents detachment of the bonnet from the body due to vibration.
- Burr-free threads and internal surfaces reduce leaks, promoting accurate transmitter readings.
- Bonnet to body seals are metal to metal, No O-rings used.
- Panel mounting options available.
- stainless steel construction for superior corrosion resistance.
- One-piece construction body provides strength.
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings.
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability.
- Compact design requires minimum space for operation and installation.
- Dust caps are fitted to contain stem lubricant and prevent the ingress of contaminants.
- Easy to assemble and replace packing.
