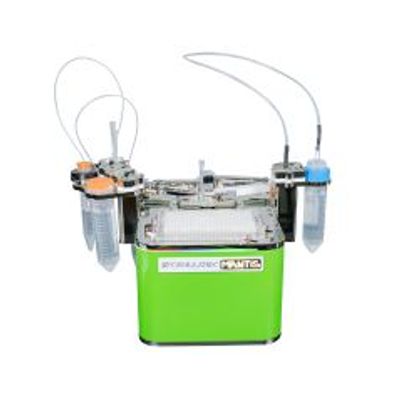

Mantis® - Precise Liquid Dispenser

FromFormulatrix

SHARE

The Mantis Liquid Dispenser is an easy-to-use, microfluidic reagent dispenser designed to deliver highly precise, low-volume liquid handling for 96-, 384-, and 1536-well plates. With patented microfluidic technology, the Mantis eliminates the need for pipette tips and complex calibration. It supports independent dispensing of multiple reagents in any combination of wells, making it ideal for assay development, qPCR setup, compound screening, and other high-throughput applications.

Most popular related searches

liquid handling

microfluidic technology

biological safety cabinet

Benefits:

High Precision and Reproducibility: Dispense volumes as low as 100 nL with exceptional consistency (CV < 2%), enabled by the new High-Fidelity Chips that ensure even tighter control over dispense accuracy and precision
Efficient: Miniaturize reactions, scale up throughput, save on reagents, and remove pipette tip cost, saving time and resources across the board
Tackle High-Viscosity and Diverse Reagents: The continuous flow chips enable accurate dispensing of thick fluids like 70% glycerol, DMSO, beads, and mastermix—ensuring broad reagent compatibility for various workflows
Reliability and Traceability with Every Dispense: The Mantis ensures reliable dispensing with droplet verification, real-time LED status, automated breach detection, and RFID tracking for accurate, traceable results and enhanced uptime across your workflows
Fast, Error-Free Setup with CSV Templates: Seamlessly import CSV templates for quick and error-free experiment setup, streamlining workflows and reagent normalization
Fast Labware Setup with Intuitive Control: Define labware in seconds with the Interactive Labware Teaching module, and enjoy a streamlined setup process through an intuitive user interface
Compatible with a Broader Range of Plates: The Adaptable Plate Clamp is gentle enough to accommodate even thin-bottomed plates
Biosafety Cabinet Compatible: With its compact dimensions (350 mm x 232 mm x 212 mm), the Mantis can be used in various biosafety cabinets to accommodate workflows that require this level of safety
Automation Friendly: Integrate effortlessly with external systems, fostering connectivity and data synchronization
Seamless Operation in Regulatory Environments: The system features optional 21 CFR Part 11 Capable Software
Small Footprint: All these new features are packed within the same small footprint

Broad Range of Applications:

Assay Development and Design of Experiment (DoE)
Next Generation Sequencing (NGS) - Library Preparation
Polymerase Chain-reaction (PCR) Workflows Real-time and Digital
Enzyme-Linked Immunosorbent Assays (ELISA)
Cell Culture and Bead-Based Assays
Scaling Up Organoid Cultures
3D Cell Culture

Dispense Technology
Micro-Diaphragm Pumps + Continuous Flow

Dispense Volume
Range: 0.1 µL – ∞
Precision: <2% CV at 0.1 µL

Plate Compatibility
Compatible with 96-, 384-, and 1536-well plates
Supports deep-well and PCR plates
SBS footprint

Reagent Compatibility
Aqueous, DMSO, and viscous solutions
Protein, cell-based, and enzymatic reagents

Physical Dimensions
Height: 230 mm (9”) (Full Extension, not including pipette tip input)
Height: 188 mm (7.4”) (No Extension, not including pipette tip input)
Width: 335 mm (13.1”) (smaller without ACC or reagent holders)
Depth: 215 mm (8.4”)
Weight: 5.2 kg (11.5 lbs)

With LC3 Dimensions

Width: 502 mm or 19.76” (Mantis with LC3)
Height: Full Extension: 286 mm or 11.26”
Depth: 240 mm or 9.45”

Connectivity
USB and Ethernet

Power Requirements
100–240 V AC, 50/60 Hz, 50 W
