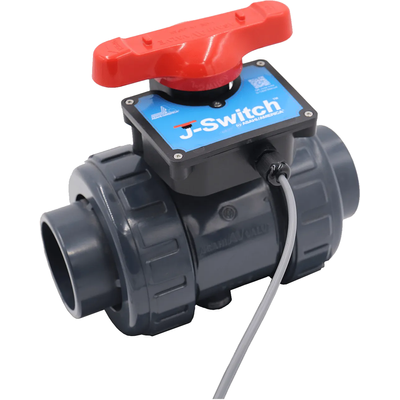

Asahi-America - Model J-Series -Manual Ball Valve Limit Switch

J-Series manual ball valve limit switches (J-Switch®) are compatible with Asahi/America’s Type-21/21a ball valves and Type-23 Multiport™ ball valves. Compact IP67 limit switch for remote position indication of manual valves includes 2-spst mechanical switches, terminal strip, visual beacon, enclosure, factory mount and testing.

Temperature Limit:

150^o F

Enclosure:

Glass-filled polypropylene

Fasteners:

304 stainless steel

Electrical Connection:

Cable gland w/ 2M flying leads

Limit Switches:

2 SPST, Proximity

Voltages:

0.5A @ 180 VAC/VDC Max

Protection:

NEMA 4X

Low profile
Direct mount
Glass-filled polypropylene NEMA 4X enclosure with stainless steel trim
No switch adjustment needed
Temperature limit of 150^o F
No tools required for installation
