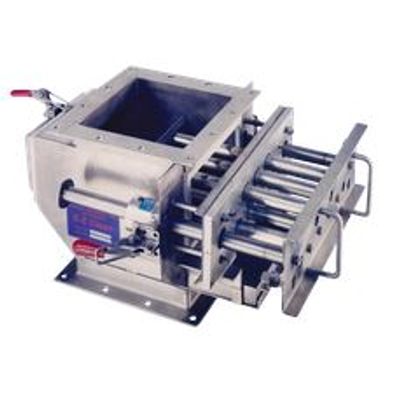

Puritan - Manual Clean Drawer Magnet

Manual Clean Drawer Magnets provide excellent equipment and product protection of medium and fine ferrous contaminants in dry, free flowing products under gravity flow. Multiple staggered rows provide maximum contact area for product flow. As product flows through the stainless steel housing, it cascades over the staggered rows of magnetic tubes. Ferrous contaminants are pulled to the surface of the magnets where they move to the underside of the tube to prevent any wash off. Drawer Magnets should be cleaned periodically for the most efficient performance. To clean the magnetic tubes, release the latch assembly and open the door. Remove the grate assemblies one at a time. Remove the tramp metal by hand. Use extreme caution and wear gloves during the process. Rare earth magnets are extremely powerful and tramp metal is very difficult to remove by hand. EZ CLEAN™ or POW-R CLEAN™ options should be considered.

• Highest grade of magnet material including Neodymium-Iron-Boron (rare earth), Samarium-Cobalt (rare earth), Ceramic and Alnico
• 1/8" thick x 2" tall stainless steel support stringers welded to tubes
• Rugged, high strength designs
• Seam welded tube ends
• 100% stainless steel enclosed construction

• 316L stainless steel and other alloy construction
• Special sizes on request
• E-Z Clean™ options
• Round sizes available
• Non-standard tube spacing
