HamiltonModel 86725 -Manual Plug Valves

SHARE

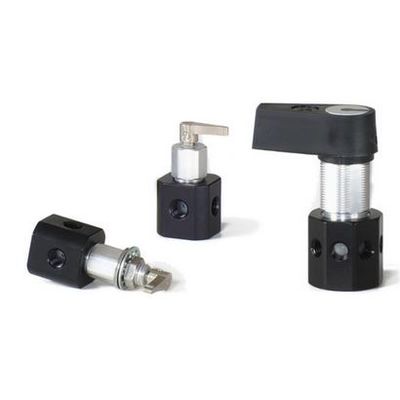

Hamilton (HV) Plug Valves provide an economical and flexible method of custom-building a fluid flow control system, from a simple on/off valve to a more complex multi-valve arrangement, using a combination of loop and distribution valves. The small valve body with its chemically inert PTFE/CTFE flow path is ideally suited for low pressure (100 psi) applications. All HV Plug Valves allow you to select and interchange a wide variety of fittings, adapters and tubing, including male and female luers, FEP tubing assemblies, and adapters which thread directly into the valve providing an endless variety of valve configurations for any flow application.

Most popular related searches
  • Valve Model 1-1
  • Valve Model Description 180° Flow Path 2-ports
  • Fluid Path PTFE/CTFE
  • Valve Size HV
  • Nominal Port Diameter 0.059 inch (1.5 mm)
  • Valve Outer Body Dimension 0.75 inch (19.1 mm)
  • Housing Material Aluminum
  • Total Dead Volume 14 µL
  • Actuated Manual
  • Break Away Torque 15 oz-in (105.9 mNm)
  • Panel Mounting No
  • Thread Depth 0.219 inch (5.6 mm)
  • Threaded Connection ¼-28
  • Operating Temp High 38 °C (100 °F)
  • Operating Temp Low -12 °C (10 °F)
  • Operating Pressure 0 to 100 psig (0 to 6.9 bar)
  • Storage Temp High 38 °C (100 °F)
  • Storage Temp Low -18 °C (0 °F)
