Adamant Valves - Model AV-2MS -Manual Sanitary Standard Ball Valves

FromAdamant Valves

SHARE

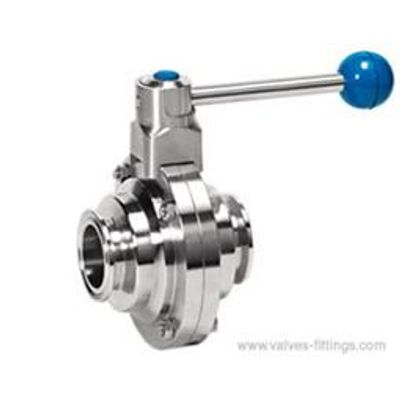

AV-2MS series is a kind of manually operated butterfly-type ball valve. With good capacity in dealing with viscous medium or particulate, it is widely used in food, beverage, pharmaceutical and chemical industrial piping system, especially the brewing industry, to regulate and control the medium flow. Materials: AISI-304, AISI-304L, AISI-316, AISI-316L Size: 1/2''-4'' Gasket: EPDM (default) Seat: PTFE

Most popular related searches

sanitary ball valve

3 way ball valve

manually operated butterfly valve

butterfly valve ball

manually operated valve

AV-2MFC-3T series is a manual type sanitary 3-way ball valve with tri-clamp / tri-clamp ends, which is extensively used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow. The full port design with zero restriction makes it an optimum choice for viscous and particulate liquids, AV-2MFC-3T ball valve operates manually by 180°rotary Handle.

Sizes are available from 1" to 4" (1”, 1 1/2", 2", 2 1/2", 3", 4")

DN25 to DN100 (DN25, DN40, DN50, DN65, DN80, DN100)

Valve body can be AISI 304 or AISI 316L.

Valve seat: Teflon (PTFE)

Max. working pressure: 145psi (10bar)

Temperature range: -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.

End connections: tri-clamp / tri-clamp, others available upon request.

Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

3-way body as the product photo shows, T type or L type for choose from

Handle: 180°rotary handle.
