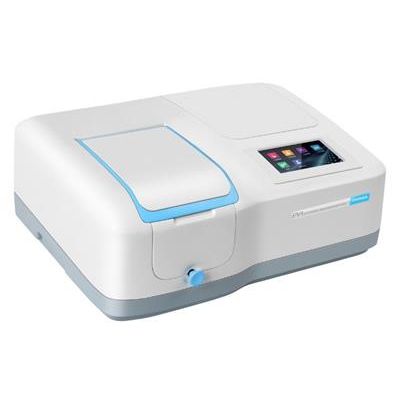

Mapada - Model PV1 -Single Beam Visible Spectrophotometer
PV1 single beam visible spectrophotometer. Through simple parameter setting, photometric analysis, quantitative analysis and kinetic testing are conveniently carried out. With the professional Mapada scanning analysis software, full multi-wavelength testing can be realized.
Most popular related searches
single beam visible spectrophotometer
visible spectrophotometer
single beam spectrophotometer
sample holder
spectrophotometer
photometric analysis
photometric
spectrophotometer system
tungsten light source
thermostat bath
- model: PV1 visible spectrophotometer
- Optical system: Single beam
- Light source: Tungsten lamp
- Receiver: Silicon photocell
- Spectral bandwidth: 4nm
- Wavelength range: 320 – 1050nm
- Wavelength accuracy: ±0.8nm
- Wavelength repeatability: ≤0.4nm
- Wavelength display: 0.1nm
- Wavelength of rotation: 10000nm/min
- Photometric range: -0.301 – 3A, 0 – 200%T, 0 – 9999.9C
- Photometric accuracy: ±0.003A @ 0.5A, ±0.006A @1A, ±0.5%T @ 0 - 100%T
- Photometric repeatability: ±0.0015A @ 0.5A, ±0.003A @1A, ±0.2%T @ 0 - 100%T
- Photometric noise: ≤0.0005A @ 0A,≤0.001A @ 1A,≤0.002A @ 2A(500nm)
- Photometric stability: ≤0.002A/hr (500nm, after 2 hours of preheating)
- Stray light: ≤0.2%T
- Storage: 236KB (built-in), unlimited (USB storage)
- Display: 5-inch color LCD screen (480 × 272)
- Keyboard: Resistive touch screen
- printer: Serial port micro printer, USB printer (in accordance with HP PCL3 GUI printing language)
- Interface: Serial port (print), USB-A (storage and printing), USB-B (online)
- Sample rack [standard]: 10mm manual quad
- Sample holder [can be equipped with]: 10–50mm manual quadruple, 10–100mm manual quadruple, 10mm automatic octagonal, 10–100mm automatic pentagon,
- Micro frame, constant temperature / programmable injection, reflective accessories, solid sample holder, single / quad water bath thermostat, test tube rack
- 6 languages (English, German, French, Spanish, Portuguese, Simplified Chinese)
- power supply: 100 ~ 240 V AC, 50/60 Hz, 75 W
- Size: 456(W)×360(D)×185(H)mm
- Weight: 10.5kg
