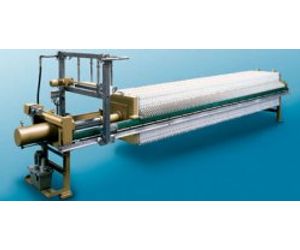

Marble Sludge Filterpress for Continuous Solid-Liquid Separation
The filterpress is a machine specifically designed for marble processing business. It is manufactured using premium quality materials and technologies, all in function of the specific characteristics of marble sludge. Provides continuous separation of solid sludge components and total reuse of wastewater. An efficient and reliable machine, requiring only a few simple maintenance operations, offering money - saving advantages. Does not require chemical reagents. operates continuously and automatically.
Our success and constant development are based on decades of experience with filtration problems, modern and well proven designs, and specific solutions. For the benefit of our customers we offer economic solutions, tailor made to suite individual applications and made up of modular components.
- Hand or hydraulic unit
- Washingsystem to clean-plates and cloths
- PP swivel plate
- Hydro-mechanical plate transport
- Work platform for maintenance
- Light curtains
- Filtrate collecting shute
- Filtrate flowmeter
- Filter cloths
Of course it is possible to have product - wetted parts of the filterpress equipped with corrosion resistant coating.
A. Chamber Filterpress
- Platesize : 400 - 1200 mm
- Filterarea : 2.3 - 215 m2
- Contents : 0.026 - 3 m3
- Operating Pressure : upto 1.6 Mpa
- Cake thickness: 15 - 50 mm
B. Membrane Filterpress
- Plaat size: 470 - 1200 mm
- Filterarea : 3.5 - 215 m2
- Contents : 0.038 - 3 m3
- Operating Pressure : upto 0.8 Mpa
- Membrane Pressure : upto 1.6 Mpa
- Cake thickness: 30 - 50 mm
C. Combination of both
Automatic filter plate transport
The automatic shifting is made hydromechanically. A carrier , which is fixed to an endless roller chain, is moved up and down. With inter-locking guaranties that only one plate is shifted at a time. This system automatically moves each plate in succession without interruption unless overridden by the operator.
With the membrane filterpresses a dry solids contents up to 60-70% can be achieved. the solid, concentration should be minimum 5-10% in order to get a good cake.
