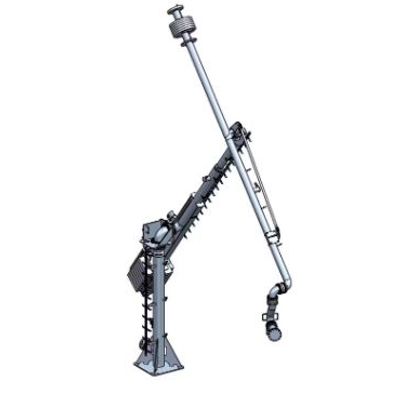

Wiese Europe - Model Barca -Marine Loading Arm for Liquid and Gas Transfer
The Barca marine loading arm is designed to efficiently transfer both liquid and gaseous products to and from barges or coasters. Engineered with a self-bearing structure, this loading arm ensures stability and smooth operation even in demanding marine environments. It achieves balance through the use of two single adjustable counterweights, which provide fine-tuning capabilities to adapt to varying conditions and ensure optimal performance. The construction's durability and reliability make it suitable for a wide range of marine applications, offering users a robust solution for efficient and safe product transfer operations.
The Barca marine loading arm transfers liquids or gaseous products, to and from barges or coasters. This marine loading arm features a self-bearing construction that is balanced through two single adjustable counterweights.
- Swivel joint model 3-2ST
- Product pipe in carbon steel or stainless steel
- Overdimensioned swivel joint design to support the forces acting on the loading arm
- Two single adjustable counterweights balance the inboard and outboard arm in each position
- Effortless manual operation
- Mechanical locking of the arm in resting position
- Suitable for chemically aggressive products
- High and low temperature application
- High and low pressure application
- Dimensions: 6” – 8” (DN150 – DN200)
