SkimOil - Model MarineVAP™ -Marine Water Evaporator
With the ever-tightening environmental regulations and strict EPA enforcement of the Clean Water Act, SkimOil Inc. has introduced MarineVAP™, the new onboard system for evaporating marine waste waters, including gray water, oil bilge water—even treated black water. Effective in 2009, all vessels at least 79 feet long are mandated to have NPDES permits for managing all waste waters generated on board. With more “no discharge zones” being designated throughout the inland and coastal waters, the pressure is on boat operators to better manage marine wastewaters.
SkimOil’s zero liquid discharge MarineVAP system is a completely marinized, simple device and the logical successor to the SkimOil BilgeVAP that has been successfully used for years to eliminate oily bilge water. Our technology is mature and has been well proven, and now the materials and controls are even better.
Unlike storage tanks that take up a lot of room or treatment systems that can be complicated and require constant operator involvement while still relying on pumping the water off for costly third-party disposal.
The electric-powered MarineVAP, with no emissions, is the “final solution” to managing bilge and gray waters. MarineVAP safely and automatically turns waste water to vapor and evaporates it away. Gray water is often the largest waste stream on board modern workboats. MarineVAP eliminates the problem.
MarineVAP is a safe, closed/sealed unit with a small footprint and external insulated heat coils encircling a smaller heat transfer chamber. Designed with an automatic control system for automated startup, shutdown and operation, the completely self-contained MarineVAP system incorporates a pump for metering water into the unit on demand, to keep up with the amount of water evaporated. This process is far more efficient than heating a large tank of water and allows for rapid heating adequate to evaporate waste streams safely and quickly. The proprietary control system includes level controls and automatic shutdown for low level or high temperatures and status monitoring.
MarineVAP MV8 #101 evaporates 8 gallons of waste water per hour. Larger sizes are available, as is the SkimOil ShoreVAP, which uses LPG or waste oil to fire the evaporator.
SkimOil is a specialty design manufacturer, consultant and distributor of marine and industrial pollution control equipment and systems. For more than 15 years, SkimOil has provided businesses with solutions to special waste disposal problems and pollution control. SkimOil systems, used in more than 40 countries around the globe, are built to address the unique problems of each business. SkimOil’s innovative equipment and technologies can be used off the shelf or customized to meet the needs of individual companies.

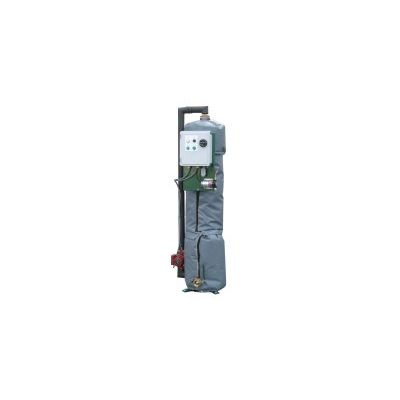

MarineVAP Onboard Marine Water Evaporator
Skimoil’s zero liquid discharge MarineVAP system is a completely marinized, simple device and the logical successor to the Skimoil BilgeVAP that has been successfully used for years to eliminate oily bilge water on inland waterways workboats. Our technology is mature and has been well proven, and now the materials and controls are even better. This automatic system will evaporate away―all marine wastewaters quickly, safely and efficiently, turning your boat into a NO DISCHARGE ZONE!

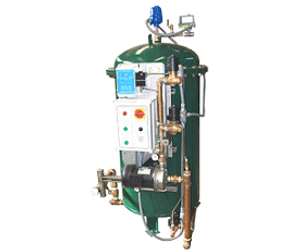

Brute Bilge Oil Water Separator System
Skimoil’s Brute Marine Oil Water Separator is USCG Certified (ABS/BV type approval) and meets IMO/MEPC 107(49) or IMO/MEPC 60(33). The Brute is easy to use/maintain with automated self-monitoring controls, simple maintenance free design (no filters), stainless steel centrifugal pump, and all bronze and red brass piping and valves. The BRUTE is the only separator in the USA that is built "from the ground up" in an ASME code shop with hi quality components….

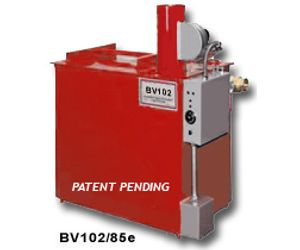

BilgeVAP Bubba-Proof Onboard Marine Water Evaporator
Skimoil’s BilgeVAP is a partial answer to the marine waste water management requirements presented by the new EPA enforcement of the Clean Water Act. The BilgeVAP evaporates away the water portion of oily bilge water, gray water and even treated black water coming off of Marine Sanitation Devices (MSD) allowing workboats, barges and even shore facilities to become no discharge zones.

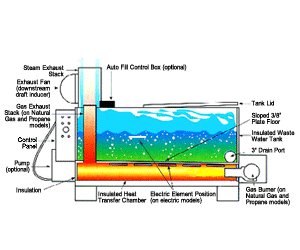

ShoreVAP Bubba-Proof onshore Marine Water Evaporator
The ShoreVAP is designed for use on your dock or barge or shop. This unique dual fuel evaporator, can be fired by your waste oil or diesel—OR by Natural/LP gas. This is maximum efficiency—use your waste oil, which you used to have to pay to get rid of—to get rid of the water you have to pay to dispose of! That’s recycling!

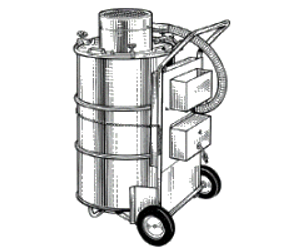

WiseASH incinerator
#RM97 "Supercharged Burn Barrel" burns away all your trash, oil filters, waste oil, oily stuff. Over 300 of these operating on workboats in the USA. The only thing they take off is glass and metal! Quit paying midstreamers to take your trash!

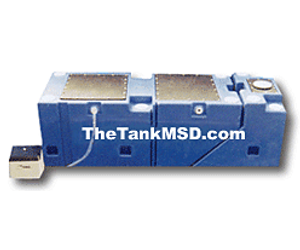

TheTankMSD - Type II Marine Sanitation Device
Takes all the crap you can give it! A very simple and reliable MSD. Designed specifically for retrofit jobs.
OOPS Filter Overboard Oil Protection Systems
The OOPS Filter (Overboard Oil Protection Systems) is a simple solution to a serious problem. It simply removes oil and works with any bilge pump, SIZES FOR ALL BOATS.

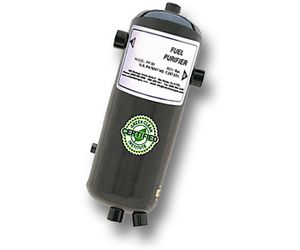

The Fuel Purifier — "the filterless filter"
Just clean fuel. Simple inline separator. Lasts forever. Protects your filters. No replacements elements.
