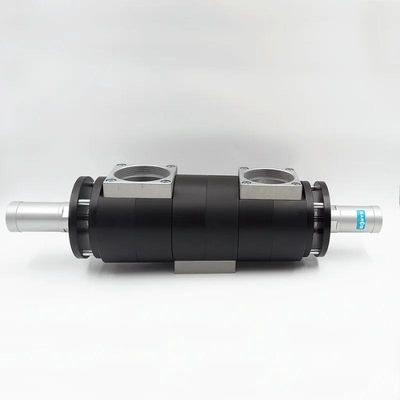

Maros - Model INVA 53 -Air Flow Reversing Valves
INVA 53 is a 5 way 2 position air flow reversing valve designed for applications with vacuum. Air Flow Reversing Valve for use with blowers. Aluminium or POM C valve body. Pneumatic or electric actuator. Max temperature +140 C°.
Most popular related searches
electric actuator
air valve
pneumatic actuator
control valve
vacuum sensor controller
blower
pneumatic valve
valve box
- Rapid vacuum interception and interruption
- Remote control Switch box for valve status remote control on request
- Stand-by function allowing to stop grab/release while keeping the blower working.
INVA 53 vacuum valve is the perfect solution for automation applications such as :
- Grab&release in automatic handling operations.
- Automatic lifting operations Pneumatic transport
- Grab & release function for automatic loaders Packaging operations
- Type: 5-way 3 positions reversing valve
- Sizes: 1”1/2 – 2” – 2”1/2 – 3” – 4”
- Pipe threads: F/F gas ISO228
- Available actuator: Single Acting (electric actuator)
- Double Acting (pneumatic actuator)
- Max fluid temperature: +140°C (based on Maros engineering’s test)
- Ambient temperature: 0/+60°C
- Valve body: anodized aluminium
- Seal holder: anodized aluminium
- Shutter seal: FKM
UPON REQUEST
- Cert. ATEX 1”1/2,2”,2”1/2 anodized aluminium body pneumatically driven type only
- Valve body in POM C
- PTFE shutter seal
- Switch-box for valve status remote control
