QINSUN - Model iso 12945 - martindale abrasion and pilling tester

SHARE

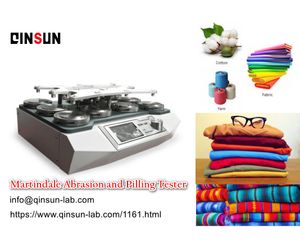

The Martindale Pilling Tester tests the abrasion and pilling properties of various plants. Under a certain pressure, the specimen is subjected to continuous commutation friction with a specified abrasive, and the degree of wear and pilling is evaluated in comparison with standard parameters. Touch screen control with fully functional programmer, pre-programmable batch and total counts, individually set counts for each test head; 4 speeds including standard speed can be selected.
Most popular related searches
ASTM standard

ASTM D4970 ISO 12945.2, GB/T 4802.2/13775/21196.1/21196.2 ASTM D4966 ISO 12947 FZ/T 20020 BS 3424-24/5690 ISO 12947.1/12947.2 M&S P17/P19/P19C NEXT 18/18a/18b ISO 5470-2 IWTO-40 JIS L1096 8.17.5 Method E Woolmark TM 112/196 BS EN 388/530/13770 ISO 20344

1. Number of work stations: 9 positions;
2. Counting range: 0~999999 times
3. Maximum moving range: horizontal 60.5±0.5mm vertical 24±0.5mm
4. Pressurized object mass.
a.Gripper: 200±1g
b. Clothes specimen weight: 395±2g
c. Furniture decorative sample weight: 594±2g
d. Stainless steel butterfly: 260±1g
5. Effective friction diameter of the grinding block
A type 200g (1.96N) friction head (9KPa) ¢ 28.8-0.084mm
B type 155g (1.52N) friction head (12KPa) ￠ 90 -0.10mm
6. Gripper and grinding table relative movement speed: 20-70r / min (adjustable)
7. Loading sample pressure hammer mass: 2385±10g

ps: (WLJCDM809)
https://www.qinsun-lab.com/10.html
https://www.standard-groups.com/en/TextileGarment/693.html
