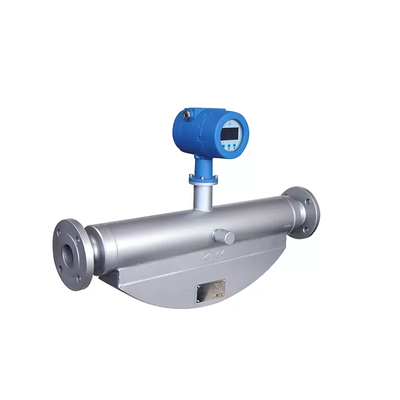

GPE - Model Coriolis F1001 Series -Mass Flowmeters
F1001 -Series Coriolis mass flowmeter provides best mass flow, density and temperature measurement performance, and also calculate volume flow, total flow and fluid composition in real-time. Currently it has three styles available which are M type sensor, U type sensor and S type sensor , Meanwhile each series has its own compact and remote meters.
In general, a typical mass flowmeter is made up of a flow sensor and a signal transmitter. The flow sensor is designed to equip two flow tubes for vibration which resulting in signals for pickoff; The signal transmitter is employed with digital signal processor (DSP), and dynamic vibration balance (DVB) circuit to deliver fast response but accurate measurement performance. In addition, in situ node-configuration, diagnostics and data recording are easily handled via HART or Modbus RTU communication.
- Direct measurement: Mass flow, density, temperature, volume (by mass flow and density), Water-cut oil , Brix. For options
- API table compensation for density and volume
- No moving parts & abrasion, low maintenance, Compatible to fluid and environment change
- Unparalleled high reliability & accuracy up to 0.1%
- UL/CSA approved for Class I, Div.1
- II 2G Exdbib IIB/IIC T*Gb (ATEX Pending)
- NIST traceable calibration
- Size: 1/8” to 12”
- Flow range: 3-1,500,000kg/hr.
- Max. process pressure: Up to 250bar( based on size)
- Max. process temp.: Up to 300?
- Transmitter: DSP digital
- Process connection: ANSI, ASME, DIN, JIS, Customized
- Communication: 4-20mA; Pulse/Frequency; Modbus RTU( RS485); HART protocol
- Exdib II CT4-T6
- Class I Div. 1 Groups B, C, and D ( UL/CSA Listed)
- II 2G Exdbib IIB/IIC T*Gb (ATEX Pending)
- Oil& Gas
- Chemical processing
- Pharmacentical
- Pulp& Paper Industry
- Food& Dairy Industry
- Solvents&Resins
- Paints& Adhesives
- Flow calibration
