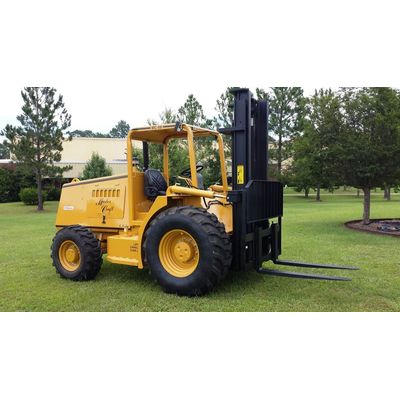

Master Craft - Model MC-06-11126 -Rough Terrain Forklifts
The Master Craft forklift offers a variety of accessories ideal for working in a rough terrain environment, including differential lock, optional 4WD, independent braking (allows for a tighter turning radius), and a lift capacity ranging from 5,000 thru 20,000 lbs. Master Craft 5,000 thru 12,000 lb forklifts come with a Perkins 1104D-44T turbocharged diesel engine, Cat® 4 x 4 fully synchromesh power shuttle transmission, Carraro drive axle and Master Craft heavy duty box style constructed 2WD steer axle with double steer cylinders. A Carraro steer axle is standard on all 4WD models.
Master Craft 14,000 thru 20,000 lb forklifts come with either a Perkins 1104D-44T turbocharged diesel engine or a Caterpillar direct-injected C4.4 turbocharged and charge air cooled diesel engine, ITL 4 speed powershift 4 x 4 transmission, Carraro drive axle and an ITL 4WD steer axle.
All Master Craft forklifts have a 12 month or 2000 hour warranty from defects in material and workmanship.
- Lift Capacity @ 24" LC: 6,000 lb
- Mast Height Range: 10-24`
- Engine: Perkins Tier 3 1104D-44T 4 cyl. diesel turbo charged engine
- HP: 84
- Engine Capacity: 4.4 liters
- Transmission: Turner fully synchromesh 4x4 power shuttle transmission with torque converter and column mounted electrical fwd./rev. control.
- Drive Axle: New Holland D46 drive axle w/ hydraulic activated wet disc brakes w/ independent park brake (disc caliper) differential lock
- Wheel Drive: 2WD
- Standard Mast Tilt: 38F-9R
- Standard Carriage: 60"
- Total Mast Side Shift: 6"
- Steer Axle: MC 2WD steer axle
