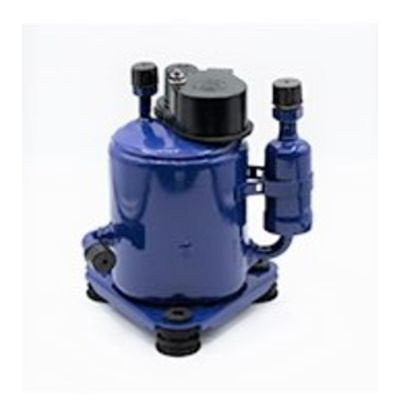

Masterflux) - Model SIERRA00161 -Variable Speed Compressor

AGENCY APPROVAL
Agency:  CURUS, UL, CE

MECHANICAL
MX:  SAE Fittings
Oil Type:  PVE 68cSt
Oil Volume (cc):  455 cc
Mounting:  3 point
Compressor Cooling:  Forced Air

GENERAL
Height:  199 mm (7.8 in)
Width: 218 mm (8.6 in)
Length: 168 mm (6.6 in)
Weight: 6.4 kg (14.1 lb)
Packaging: Multi or Single
Cond Operating Range: 26.7°C to 65.6°C (80°F to 150°F)
Evap Range: -23°C to 12.8°C (-10°F to 55°F)
Protections: Thermal Overload

ELECTRICAL
Voltage Range: 9-30VDC
Single/Dual: Dual
