Terex - Model MHL335 -Material Handler System
Engine power 115 kW. Emission standard Stage IIIB / EPA Tier 4 interim. Stage IIIA / EPA Tier 3. Service weight without attachments 24.0–26.7 t. Loading equipment 10.7–12.0 m.
Recommended attachments
Fuchs cactus grab
0.4 m3 / 0.6 m3 / 0.8 m3 Open or half-closed bowls
Light cargo grab 1.2 m3 Bulk material mass up to 1400 kg/m3
Load hooks 10 t
Telematics
- Machine data at a glance
- Indication of specified service intervals
- Fault messages shown in plain text
- Operating cost optimisation
- Machines kept in perfect condition
CAN bus and quick test for fuses
- Cutting-edge technology
- Straightforward machine diagnosis
- Intelligent fuse test for all situations
Fuchs Service Platform
- Important units easily accessible from the service platform
- Safe and convenient access to engine, air filters and other components
- Convenient access to engine, air filters and other components
- Ladders on both sides for convenient access to the superstructure platform
- Straightforward servicing and care guaranteed
- Cooling system with two spatially separate radiators
- Operating temperature kept constant at an ideal level
- Large radiator and direct air flow for outstanding cooling performance
- Quick and reliable cleaning guaranteed
Rear View Cameras
- Nightvision for extra safety
- Additional travel alarm optional
- Easy set-up via the touch display
- Enhanced control for heavy loads
- Less dust in your air filter, no loss of airflow and engine power
- Longer uptime of your air filter

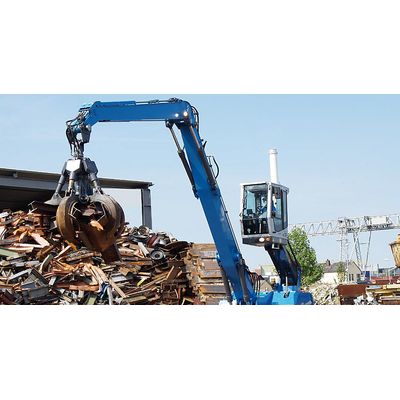

Even heavy recycling loads requiring precise handling within a specific work radius are easily dealt with using the mobile material handler, MHL 335. The particularly solid undercarriage, with its larger outrigger cylinders and a stabilization footprint measuring 5.1 x 4.3 meters, ensures stability when heavy tonne-loads are to be handled, utilizing a reach of up to 12 meters. So that in such situations neither speed nor precision is compromised, slewing motors and slewing gears are minutely adjusted and the lifting and stick cylinders equipped with special end-position damping.
