Terex - Model MHL340 -Material Handler System
Engine power 129 kW. Emission standard Stage IIIB / EPA Tier 4 interim. Stage IIIA / EPA Tier 3. Service weight without attachments 28.0–31.8 t. Loading equipment 11.0–13.7 m.
Recommended attachments
Fuchs cactus grab
0.4 m3 / 0.6 m3 / 0.8 m3 Open or half-closed
Fuchs magnetic
plate MP 1150 d = 1150 mm with 13 kW magnet system
Fuchs magnetic
plate MP 1350 d = 1350 mm with 17 kW magnet system
Clamshell grab 1.0 m3 Density of materials handled up to 1400 kg/m3
Clamshell grab 1.6 m3 Density of materials handled up to 800 kg/m3
Lift hook 10 t
Telematics
- Machine data at a glance
- Indication of specified service intervals
- Fault messages shown in plain text
- Operating cost optimisation
- Machines kept in perfect condition
CAN bus and quick test for fuses
- Cutting-edge technology
- Straightforward machine diagnosis
- Intelligent fuse test for all situations
Fuchs Service Platform
- Important units easily accessible from the service platform
- Safe and convenient access to engine, air filters and other components
- Convenient access to engine, air filters and other components
- Ladders on both sides for convenient access to the superstructure platform
- Straightforward servicing and care guaranteed
- Cooling system with two spatially separate radiators
- Operating temperature kept constant at an ideal level
- Large radiator and direct air flow for outstanding cooling performance
- Quick and reliable cleaning guaranteed
- Reduced dust in intercooler-water and oilcooler
- Enhanced cooling performance
- Easy and intuitive operation
- Full monitoring of the machine data
- Nightvision as an extra safety feature
- 360° surround view system on demand

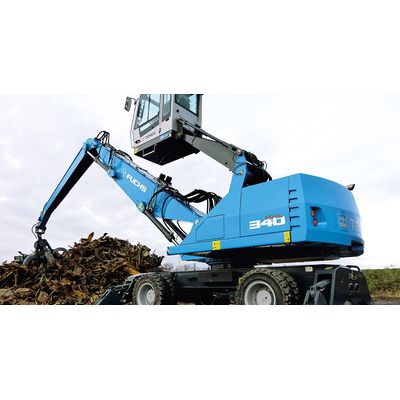

With its substantial reach and high load capacity, the Fuchs MHL 340 is among the top recycling and scrap handling models in the world. Its rock-solid stability and tough boom design ensure safety in the most extreme situations. Dual-circuit hydraulics with low power dissipation ensure that slewing maneuvers are as swift and powerful as they are precise.
With the Fuchs Quick Connect System, the MHL340 can be fitted with mobile shears, a multi-purpose or dipper stick and even a magnetic plate in the space of just a few minutes. For this, you don`t even have to leave the cab.
